NSN 5935-00-058-6404
Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-058-6404 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: MILC28748, MIL-C-28748, MS240188, MS24018-8, 5935-00-058-6404, 00-058-6404, 5935000586404, 000586404
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-058-6404 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |

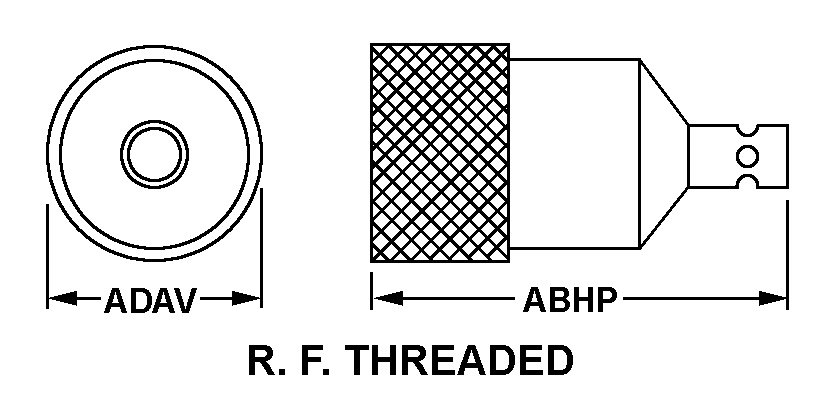

REFERENCE DRAWINGS & PICTURES
R.F. THREADED
Cross Reference | NSN 5935-00-058-6404
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-C-28748 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MS24018-8 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5935-00-058-6404
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | R.F. THREADED |
| OVERALL LENGTH | 0.660 INCHES NOMINAL |
| OVERALL DIAMETER | 0.660 INCHES NOMINAL |
| MATERIAL | PLASTIC MELAMINE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.140 INCHES NOMINAL |
| SIZE DESIGNATION | 8 |
| TEST DATA DOCUMENT | 81349-MIL-C-28748 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 96906-MS24018 GOVERNMENT STANDARD |
