NSN 5935-00-058-3085
Part Details | CONNECTOR ADAPTER
5935-00-058-3085 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Alternate Parts: 23114351205, 23114-3512-05, 23114351205, 23114-3512-05, 23114351205, 23114-3512-05, 768155454002, 7681-55454-002, TBF365PS, TBF36-5PS, TBF365PS, TBF36-5PS, 768155454002, 7681-55454-002, 23114351205, 23114-3512-05, 5935-00-058-3085, 00-058-3085, 5935000583085, 000583085
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-058-3085 | 15091 ( ADAPTER, CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

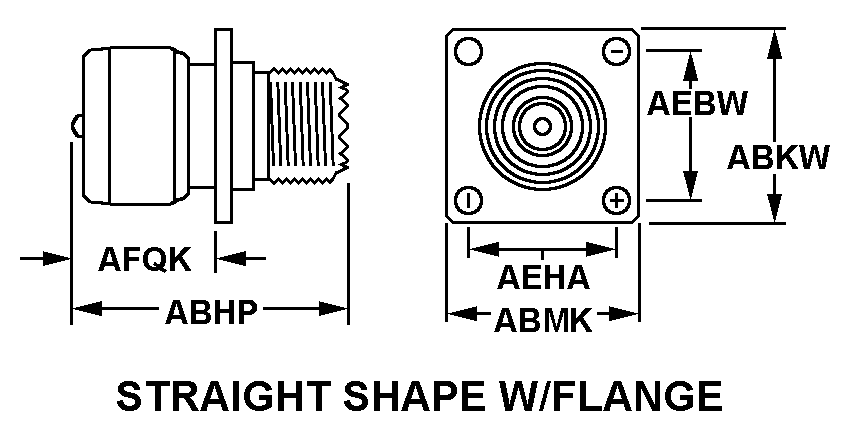

STRAIGHT SHAPE W/FLANGE
Cross Reference | NSN 5935-00-058-3085
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23114-3512-05 | D1839 | BUNDESAMT FUER AUSRUESTUNG, |
| 23114-3512-05 | C2311 | BUNDESAMT FUER AUSRUESTUNG,INFORMATIONSTECHNIK UND NUTZUNG DER |
| 23114-3512-05 | D1785 | HENSCHEL WEHRTECHNIK GMBH |
| 7681-55454-002 | 14170 | HUGHES MISSILE SYSTEMS COSAN DIEGO |
| TBF36-5PS | D1371 | ITT CANNON GMBH |
| TBF36-5PS | 71468 | ITT CORPORATIONDBA I T T CANNON |
| 7681-55454-002 | 15090 | RAYTHEON COMPANYDBA RAYTHEON |
| 23114-3512-05 | D9448 | RHEINMETALL LANDSYSTEME GMBH |
Technical Data | NSN 5935-00-058-3085
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE W/FLANGE |
| OVERALL LENGTH | 2.000 INCHES MINIMUM AND 2.155 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.500 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.938 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.938 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.812 INCHES MINIMUM AND 1.012 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.168 INCHES MINIMUM AND 0.183 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 2.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 16 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 2 |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.040 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
