NSN 5935-00-057-7409
Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-057-7409 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: 508421865001, 508-4-21865-001, 4830020001REVC, 483-0020-001REVC, DAJS1967810, DAJS19678-10, DA1967810, DA19678-10, DA1967810, DA19678-10, DA1967810, DA19678-10, ES7511B, ES751-1B, 508421865001, 508-4-21865-001, 1967810, 19678-10, DA1967810, DA19678-10, 68011000201, 1141740016, 114-174-0016, 1600025, 16-00025, 10015622010, 10015622-010, 5935-00-057-7409, 00-057-7409, 5935000577409, 000577409
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-057-7409 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

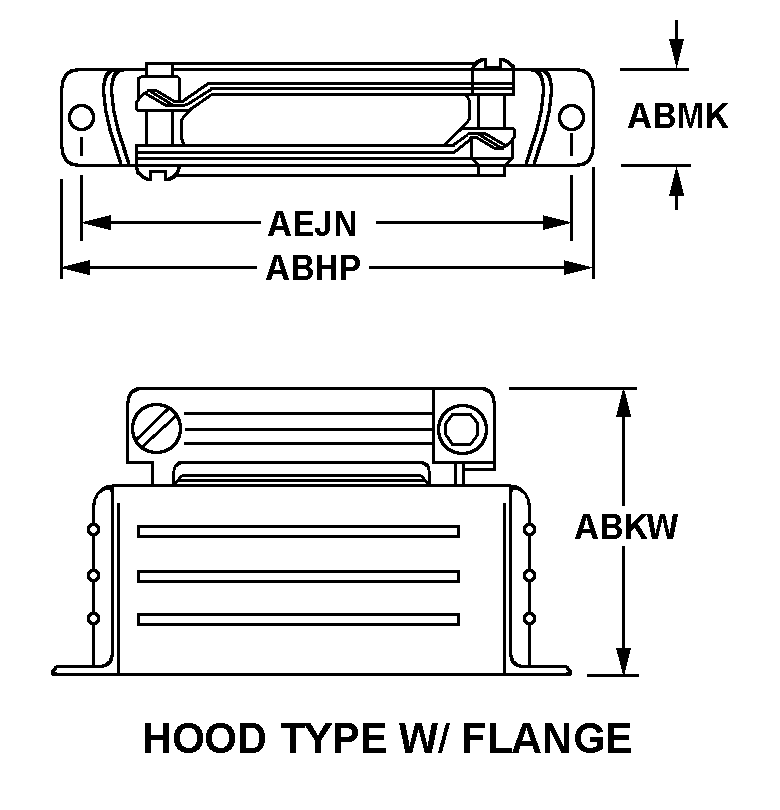

HOOD TYPE W/FLANGE
Cross Reference | NSN 5935-00-057-7409
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 508-4-21865-001 | K1156 | BAE SYSTEMS INTEGRATED SYSTEMTECHNOLOGIES LTD |
| 483-0020-001REVC | 94756 | BOEING COMPANY, THEDBA BOEING |
| DAJS19678-10 | 91557 | BROWN CO |
| DA19678-10 | 71785 | CINCH CONNECTORS, INC. |
| DA19678-10 | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
| DA19678-10 | 20418 | DRS SUSTAINMENT SYSTEMS, INC.Use CAGE Code 98255 for cataloging |
| ES751-1B | 20418 | DRS SUSTAINMENT SYSTEMS, INC.Use CAGE Code 98255 for cataloging |
| 508-4-21865-001 | K6036 | G E C MARCONI DEFENCE SYSTEMS LTD |
| 19678-10 | 71468 | ITT CORPORATIONDBA I T T CANNON |
| DA19678-10 | 71468 | ITT CORPORATIONDBA I T T CANNON |
| 68011000201 | 89944 | KOLLSMAN, INC. |
| 114-174-0016 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 16-00025 | 00724 | RAYTHEON COMPANYDBA RAYTHEON |
| 10015622-010 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-057-7409
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOOD TYPE W/FLANGE |
| OVERALL LENGTH | 1.531 INCHES NOMINAL |
| OVERALL HEIGHT | 0.484 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.312 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.300 INCHES MAXIMUM |
