NSN 5935-00-057-7042
Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-057-7042 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: G81232620B, G812-326-20B, 2681238, 10178153, 5935-00-057-7042, 00-057-7042, 5935000577042, 000577042
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 13, 1967 | 00-057-7042 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

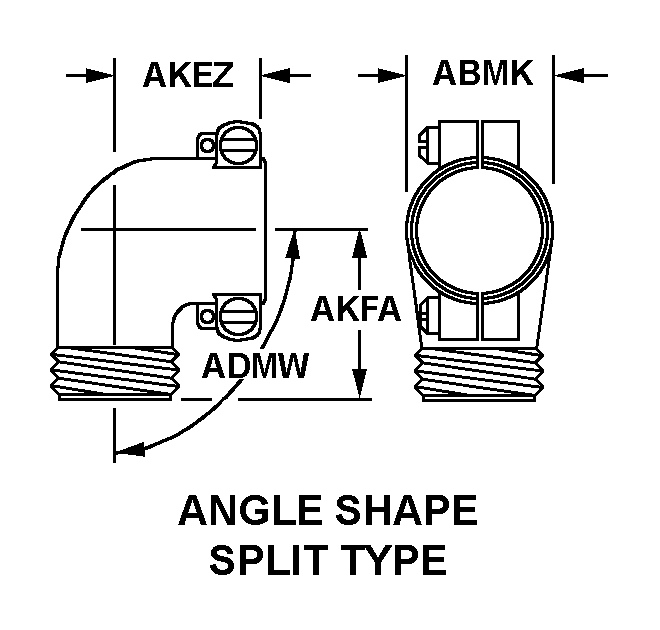

ANGLE SHAPE SPLIT TYPE
Cross Reference | NSN 5935-00-057-7042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G812-326-20B | 06324 | GLENAIR, INC. |
| 2681238 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 10178153 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-057-7042
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE SHAPE SPLIT TYPE |
| OVERALL WIDTH | 2.292 INCHES MINIMUM AND 2.322 INCHES MAXIMUM |
| BODY ANGLE IN DEG | 90.0 |
| DISTANCE FROM CENTERLINE TO CONNECTOR END | 1.940 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 2.082 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 16 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 1.250 INCHES NOMINAL |
