NSN 5935-00-057-4782
Part Details | ELECTRICAL CONNECTOR END SEAL PLUG
5935-00-057-4782 A small, thin, cylindrically shaped item having a straight, smooth, solid, nonmetallic body. It may have a boss on one or both ends. It is specifically designed for sealing contact holes against moisture, dust, and the like, in electrical connectors. Excludes PLUG, END SEAL, ELECTRICAL CONDUIT; and PIN, STRAIGHT, HEADLESS.
Alternate Parts: 1010103310, 10-101033-10, 1539437, 1010103310, 10-101033-10, 5935-00-057-4782, 00-057-4782, 5935000574782, 000574782
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 01, 1967 | 00-057-4782 | 27129 ( PLUG, END SEAL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

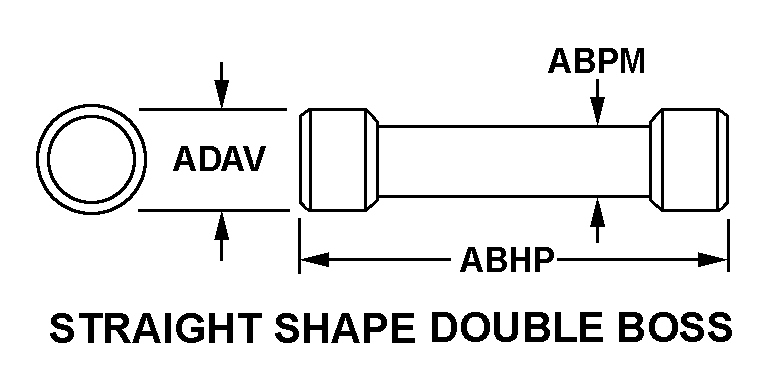

STRAIGHT SHAPE DOUBLE BOSS
Cross Reference | NSN 5935-00-057-4782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-101033-10 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 1539437 | 64547 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| 10-101033-10 | D9853 | ROCKWELL COLLINS DEUTSCHLANDSERVICES GMBH |
Technical Data | NSN 5935-00-057-4782
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SHAPE DOUBLE BOSS |
| OVERALL LENGTH | 0.466 INCHES MINIMUM AND 0.476 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.080 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| SIZE DESIGNATION | 20 |
| TEST DATA DOCUMENT | 83298-1539437 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
