NSN 5935-00-055-9366
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-055-9366 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 470B, J5160, 03920096016, 039-20096-016, 470B, 470B, 8915, 89-15, J3DW, KP9020004090, KP-9020-004-090, 5935-00-055-9366, 00-055-9366, 5935000559366, 000559366
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-055-9366 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

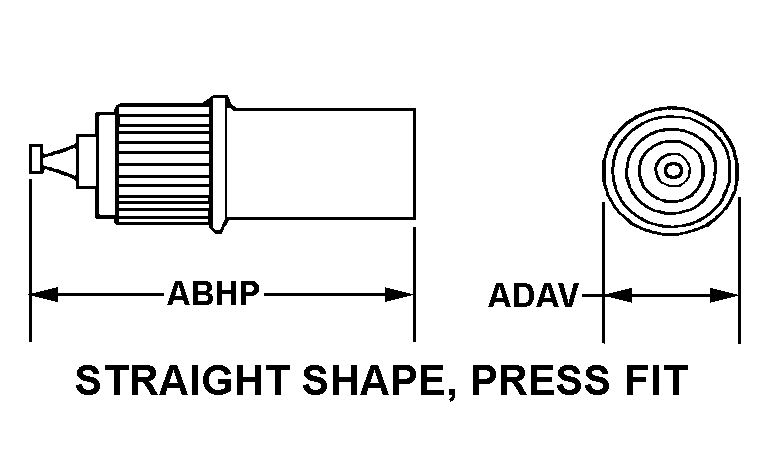

STRAIGHT SHAPE, PRESS FIT
Cross Reference | NSN 5935-00-055-9366
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 470B | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| J5160 | 09017 | EDO |
| 039-20096-016 | 12131 | LH ENTERPRISE |
| 470B | 3B4M0 | LUCENT TECHNOLOGIES INCCORPORATE HEADQUARTERS |
| 470B | 06KW9 | LUCENT TECHNOLOGIES INCDBA FEDERAL MARKETING GROUP |
| 89-15 | 81812 | TRIMM INTERNATIONAL, INC. |
| J3DW | 14949 | TROMPETER ELECTRONICS, INC. |
| KP-9020-004-090 | 91836 | WINCHESTER ELECTRONICS CORPORATIONDBA KINGS ELECTRONICS |
Technical Data | NSN 5935-00-055-9366
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE, PRESS FIT |
| OVERALL LENGTH | 2.099 INCHES NOMINAL |
| OVERALL DIAMETER | 0.503 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | CHROMATE |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
