NSN 5935-00-055-1648
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-055-1648 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 5233319, 523-3319, SK136, RTS4, RTS-4, 2994482, 99055021, 11065596, SK169, 5935-00-055-1648, 00-055-1648, 5935000551648, 000551648
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-055-1648 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
BOTTOM MOUNT W/METAL SADDLE
ROUND, W/TWO MOUNTING HOLES

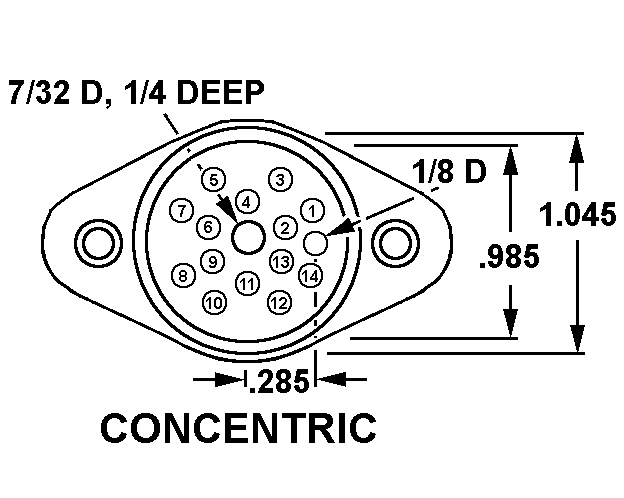

CONCENTRIC
Cross Reference | NSN 5935-00-055-1648
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 523-3319 | D1518 | KRUPP ATLAS ELEKTRONIK GMBH |
| SK136 | 83781 | NATIONAL ELECTRONICSDIV OF RICHARDSON ELECTRONICS LTD |
| RTS-4 | 83781 | NATIONAL ELECTRONICSDIV OF RICHARDSON ELECTRONICS LTD |
| 2994482 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 99055021 | F6481 | THALES SA |
| 11065596 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| SK169 | 09975 | UNISYS CORPORATION |
Technical Data | NSN 5935-00-055-1648
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CONCENTRIC |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | BOTTOM MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 1.562 INCHES NOMINAL |
| OVERALL HEIGHT | 0.686 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.093 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.781 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.600 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.250 INCHES NOMINAL |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.014 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
