NSN 5935-00-054-4172
Part Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-054-4172 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 14802789, 1-480278-9, 5935-00-054-4172, 00-054-4172, 5935000544172, 000544172
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 20, 1968 | 00-054-4172 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

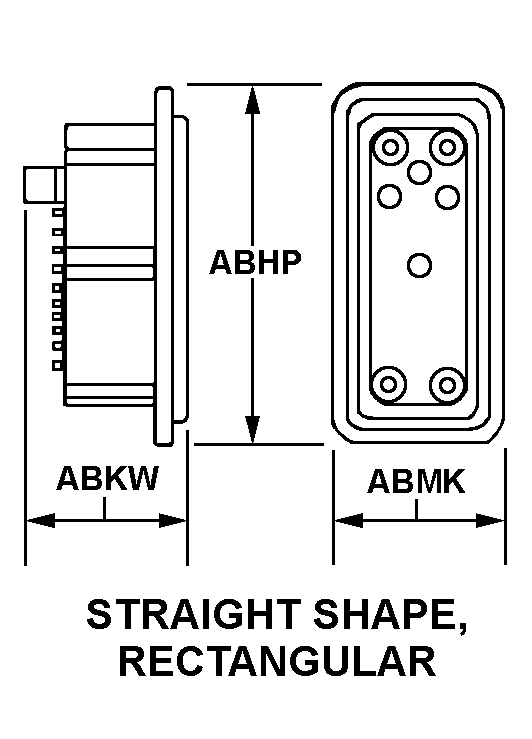

STRAIGHT SHAPE, RECTANGULAR
Cross Reference | NSN 5935-00-054-4172
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-480278-9 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-00-054-4172
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE, RECTANGULAR |
| OVERALL LENGTH | 1.535 INCHES NOMINAL |
| OVERALL HEIGHT | 0.930 INCHES NOMINAL |
| OVERALL WIDTH | 0.850 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SPRING FRICTION |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| SPECIAL FEATURES | HOUSING COLOR BLACK |
