NSN 5935-00-053-0331
Part Details | ELECTRICAL CONNECTOR JACKSCREW
5935-00-053-0331 A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like.
Alternate Parts: 1280263002, 128-0263-002, 1220172001, 122-0172-001, 0154027040, 015-4027-040, S020055, S02005-5, 705034901, 70-503490-1, G400044S1, 45900421, 4590042-1, 0400432, 45900421, 4590042-1, 85322001, 8532200-1, 85322001, 8532200-1, 85322001, 8532200-1, 003009061, 003-009061, 7168975, 716897-5, 20170940701, 2017094-0701, 2077261, 207726-1, 2008741, 200874-1, 2008741, 200874-1, 130416501, 13041650-1, 11067370, SMA8763872, SM-A-876387-2, 5935-00-053-0331, 00-053-0331, 5935000530331, 000530331
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-053-0331 | 36340 ( JACKSCREW, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

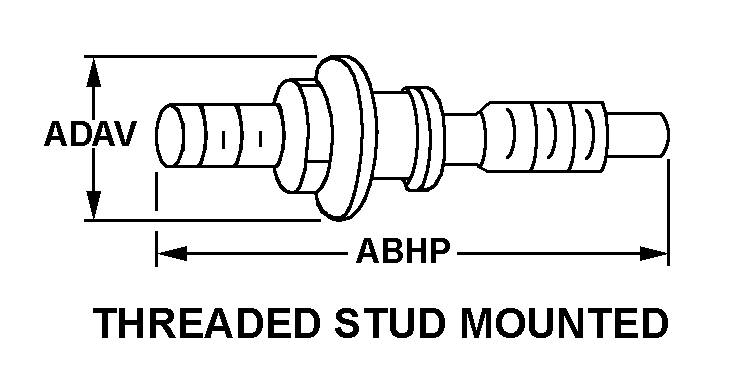

THREADED STUD MOUNTED
Cross Reference | NSN 5935-00-053-0331
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128-0263-002 | 94756 | BOEING COMPANY, THEDBA BOEING |
| 122-0172-001 | 94756 | BOEING COMPANY, THEDBA BOEING |
| 015-4027-040 | 54669 | BOEING SERVICE COMPANYDBA BOEING |
| S02005-5 | 58998 | FASTENER INNOVATION TECHNOLOGY, INC.DBA F I T |
| 70-503490-1 | 04655 | GENERAL DYNAMICS MISSION SYSTEMS,INC. |
| G400044S1 | 24930 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, RADAR |
| 4590042-1 | 31550 | HARRIS CORPORATIONDBA NIGHT VISION & COMMUNICATIONS |
| 0400432 | D0733 | HEIDELBERGER DRUCKMASCHINENAGPLANNING SERVICE PARTS PREPRESS |
| 4590042-1 | 28528 | ITT INDUSTRIES INCITT AEROSPACE COMMUNICATIONS |
| 8532200-1 | 11447 | L3 TECHNOLOGIES, INC.DBA COMMUNICATION SYSTEMS - EAST |
| 8532200-1 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 8532200-1 | 02734 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 003-009061 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MULTIPLE |
| 716897-5 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
| 2017094-0701 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
| 207726-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 200874-1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 200874-1 | D8512 | TYCO ELECTRONICS AMP GMBH |
| 13041650-1 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 11067370 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| SM-A-876387-2 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5935-00-053-0331
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREADED STUD MOUNTED |
| OVERALL LENGTH | 0.805 INCHES MINIMUM AND 0.825 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.214 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING AND 1 THREADED STUD |
| THREAD SERIES DESIGNATOR | UNC AND UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES AND 0.112 INCHES |
| THREAD CLASS | A2A$$A2A |
| THREAD QUANTITY PER INCH | A32$$A40 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.330 INCHES AND 0.350 INCHES |
| FURNISHED ITEMS | WASHER |
