NSN 5935-00-052-2523
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-052-2523 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 1330151015, 133-015-1015, 1330151015, 133-015-1015, C1000054S, C100005-4S, 5935-00-052-2523, 00-052-2523, 5935000522523, 000522523
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 16, 1967 | 00-052-2523 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

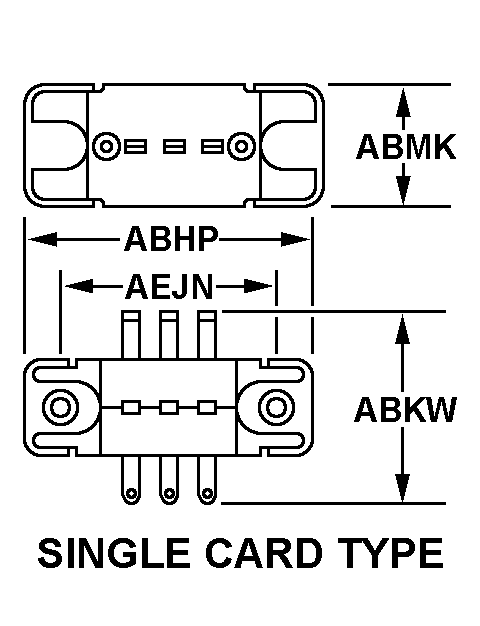

SINGLE CARD TYPE
Cross Reference | NSN 5935-00-052-2523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 133-015-1015 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 133-015-1015 | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| C100005-4S | 95924 | NEUROTECH CORPCONTROL ELECTRONICS DIV |
Technical Data | NSN 5935-00-052-2523
| Characteristic | Specifications |
|---|---|
| BODY STYLE | SINGLE CARD TYPE |
| OVERALL LENGTH | 3.257 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.677 INCHES NOMINAL |
| OVERALL WIDTH | 0.352 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.937 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.112 INCHES NOMINAL |
| POLARIZATION METHOD | INTER-CONTACT POLARIZING KEYS |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.015 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
