NSN 5935-00-051-6423
Part Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-00-051-6423 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Alternate Parts: 1036233203, 1.375, 10-36233-203, 1.375, 10036233203, 10-036233-203, SURFACE TREATMENT =, STYLE3B CLAMP, ADAP, STYLE-3B CLAMP, ADAP, 611837020, ALUMINUM, 611837-020, ALUMINUM, 611837020, 611837-020, 5935-00-051-6423, 00-051-6423, 5935000516423, 000516423
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-051-6423 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

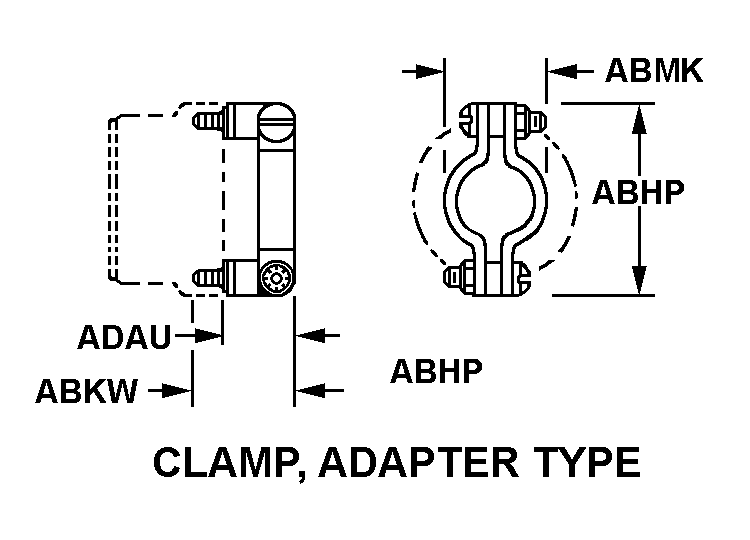

CLAMP, ADAPTER TYPE
Cross Reference | NSN 5935-00-051-6423
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-36233-203, 1.375 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 10-036233-203 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| SURFACE TREATMENT = | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| STYLE-3B CLAMP, ADAP | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 611837-020, ALUMINUM | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 611837-020 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 5935-00-051-6423
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLAMP, ADAPTER TYPE |
| OVERALL LENGTH | 1.375 INCHES NOMINAL |
| BODY HEIGHT | 0.842 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP ASSEMBLY |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.625 INCHES NOMINAL |
| SEAL TYPE | GROMMET |
| SEAL MATERIAL | RUBBER |
| SIZE DESIGNATION | 20 |
