NSN 5935-00-051-3074
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-051-3074 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 9721192, 9721-192, 9157553, 5935-00-051-3074, 00-051-3074, 5935000513074, 000513074
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-051-3074 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

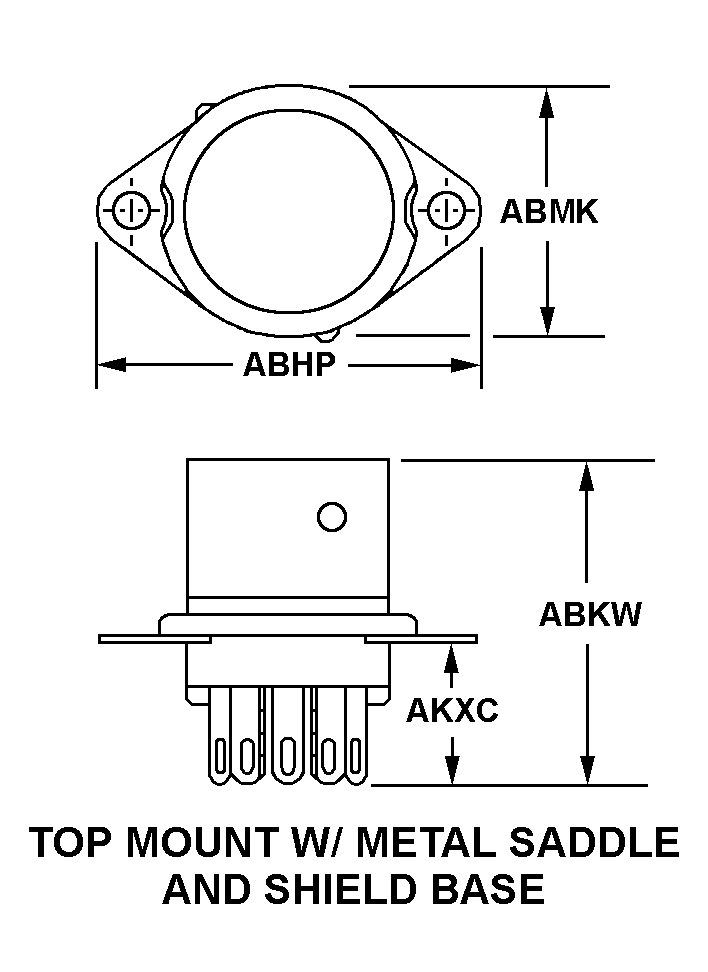

TOP MOUNT W/METAL SADDLE AND SHIELD BASE
ROUND, W/TWO MOUNTING HOLES
CIRCULAR
Cross Reference | NSN 5935-00-051-3074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9721-192 | 72825 | EBY GROUP, LLC, THEDBA EBY COMPANY |
| 9157553 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-051-3074
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/METAL SADDLE AND SHIELD BASE |
| OVERALL LENGTH | 1.094 INCHES NOMINAL |
| OVERALL HEIGHT | 1.094 INCHES NOMINAL |
| OVERALL WIDTH | 0.795 INCHES MINIMUM AND 0.805 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.719 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.125 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.875 INCHES NOMINAL |
| COMPONENT SHIELD MOUNTING METHOD | FORCE FIT |
| POLARIZATION TYPE | CONTACT POSITION |
