NSN 5935-00-051-1803
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-051-1803 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: M128831402, M12883/14-02, MILS1288314, MILS12883-14, TS0703P01, 5935-00-051-1803, 00-051-1803, 5935000511803, 000511803
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 16, 1967 | 00-051-1803 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

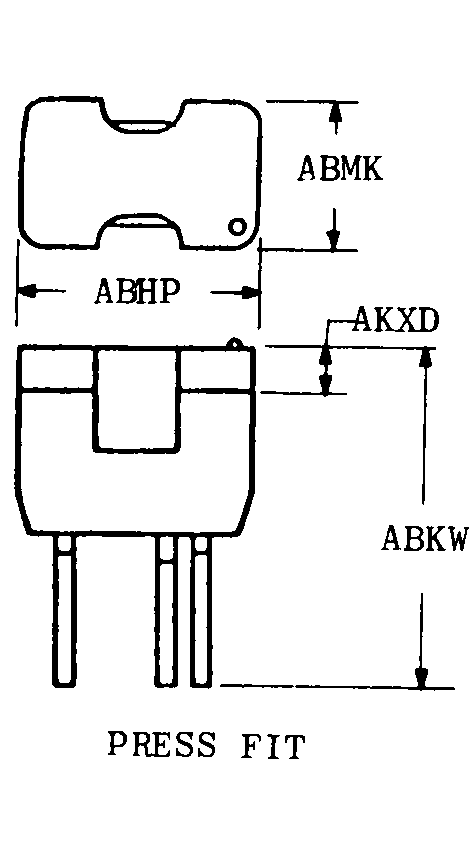

PRESS FIT
RECTANGULAR

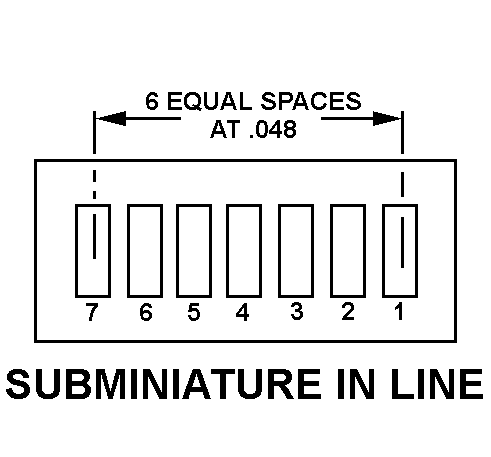

SUBMINATURE IN LINE
Cross Reference | NSN 5935-00-051-1803
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M12883/14-02 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MILS12883-14 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| TS0703P01 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 5935-00-051-1803
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | SUBMINATURE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 7 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND COPPER |
| BODY STYLE | PRESS FIT |
| OVERALL LENGTH | 0.447 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.520 INCHES MAXIMUM |
| OVERALL WIDTH | 0.213 INCHES MINIMUM AND 0.223 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 7 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | PRESS FIT |
| MOUNTING HOLE STYLE | RECTANGULAR |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.447 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.153 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| POLARIZATION TYPE | OFF CENTER HOLE |
| TEST DATA DOCUMENT | 81349-MIL-S-12883 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81349-MIL--12883 TO 14 GOVERNMENT SPECIFICATION |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| CONTACT MAXIMUM VOLTAGE IN VOLTS AND CURRENT TYPE | 300.0 AC AND 300.0 DC |
| FABRICATION METHOD | MOLDED |
| CONTACT RESISTANCE IN OHMS | 0.015 |
| TEMP RATING | 100.0 DEG CELSIUS |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.007 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
