NSN 5935-00-050-5289
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-050-5289 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: DPJMB9833SB, DPJMB98-33SB, 127741, 12774-1, 5935-00-050-5289, 00-050-5289, 5935000505289, 000505289
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 24, 1968 | 00-050-5289 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

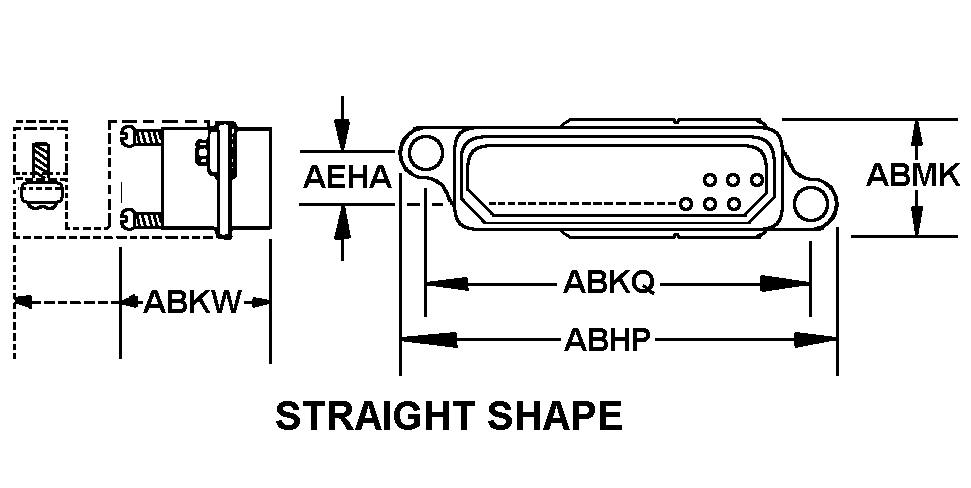

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-050-5289
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DPJMB98-33SB | 71468 | ITT CORPORATIONDBA I T T CANNON |
| 12774-1 | 11189 | KAISER AEROSPACE AND ELECTRONICSCORP PHOENIX ELECTRONICS PLANT |
Technical Data | NSN 5935-00-050-5289
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL LENGTH | 4.034 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.870 INCHES MINIMUM AND 8.880 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.250 INCHES MAXIMUM |
| OVERALL WIDTH | 1.146 INCHES MINIMUM AND 1.166 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.140 INCHES MINIMUM AND 0.144 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | FRICTION |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.098 GOLD GRAINS, TROY AND 0.098 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
