NSN 5935-00-043-0444
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-043-0444 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 80381G5, 8038-1G5, 80381G4, 8038-1G4, 6973241, 697324-1, 80381G4, 8038-1G4, 80381G5, 8038-1G5, 5935-00-043-0444, 00-043-0444, 5935000430444, 000430444
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-043-0444 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

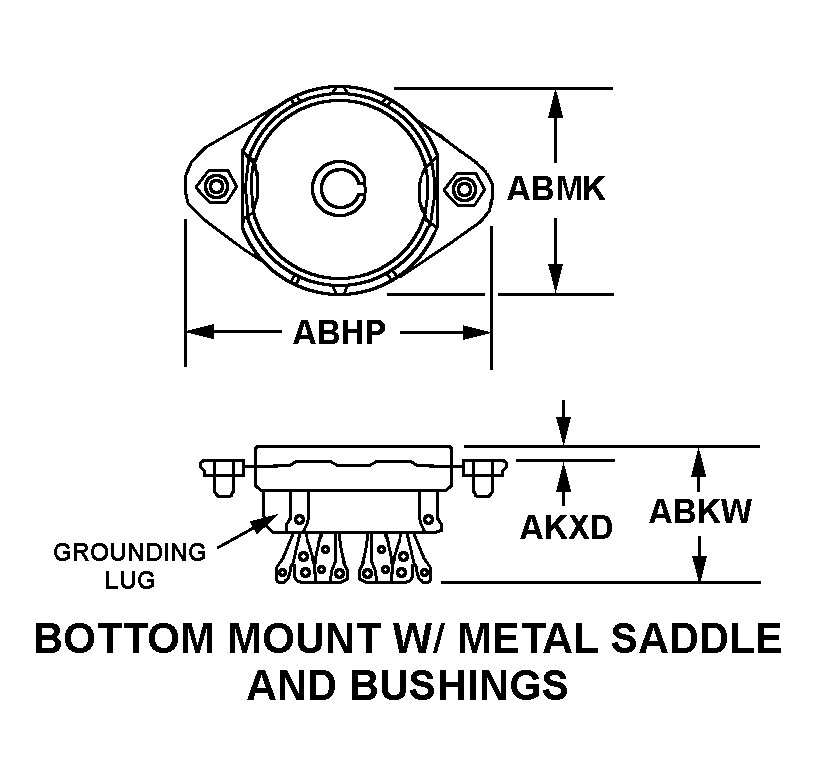

BOTTOM MOUNT W/METAL SADDLE AND BUSHINGS

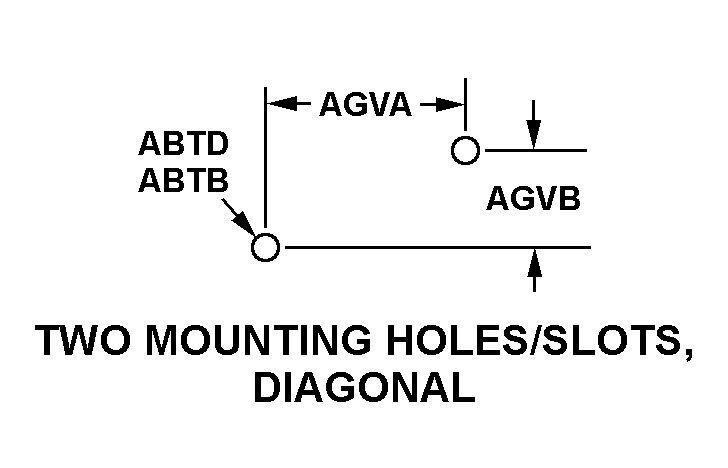

TWO MOUNTING HOLES/SLOTS, DIAGONAL
IN LINE
Cross Reference | NSN 5935-00-043-0444
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8038-1G5 | 91506 | AUGAT INC |
| 8038-1G4 | 91506 | AUGAT INC |
| 697324-1 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
| 8038-1G4 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 8038-1G5 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-00-043-0444
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | BOTTOM MOUNT W/METAL SADDLE AND BUSHINGS |
| OVERALL LENGTH | 1.975 INCHES NOMINAL |
| OVERALL HEIGHT | 1.680 INCHES NOMINAL |
| OVERALL WIDTH | 0.629 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED HOLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, DIAGONAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.281 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.702 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIFIC EQUIPMENT ACCOMMODATED | SEMICONDUCTOR DEVICE |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.010 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
