NSN 5935-00-032-9714
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-032-9714 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 2543601503, 25436-01503, 863964, 86396-4, 5935-00-032-9714, 00-032-9714, 5935000329714, 000329714
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 28, 1972 | 00-032-9714 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

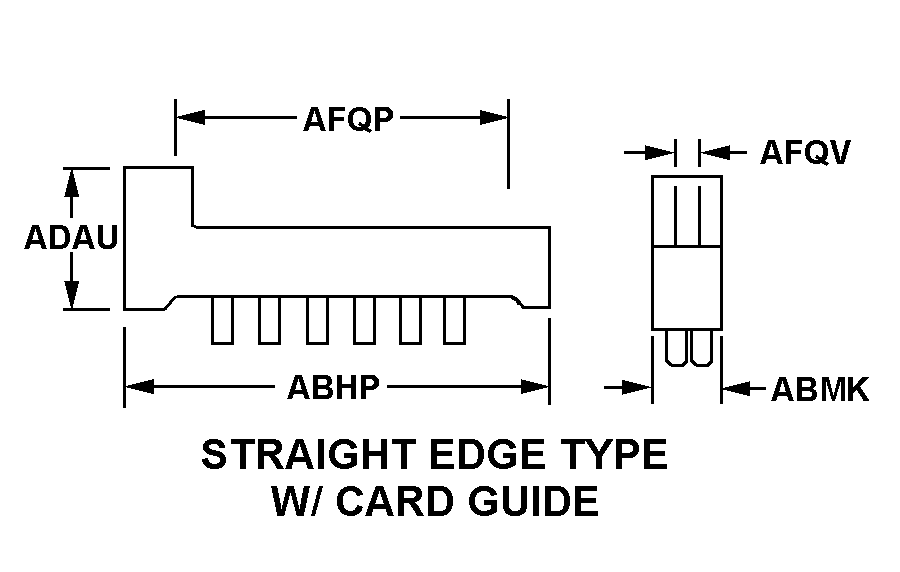

STRAIGHT EDGE TYPE W/CARD GUIDE
Cross Reference | NSN 5935-00-032-9714
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25436-01503 | K0662 | LEONARDO MW LTD |
| 86396-4 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5935-00-032-9714
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT EDGE TYPE W/CARD GUIDE |
| OVERALL LENGTH | 2.990 INCHES NOMINAL |
| OVERALL WIDTH | 0.288 INCHES NOMINAL |
| BODY HEIGHT | 0.370 INCHES NOMINAL |
| BOARD ACCOMMODATED WIDTH | 0.150 INCHES NOMINAL |
| MATING END QUANTITY | 1 |
| SPECIAL FEATURES | PRINTED CIRCUIT MOUNTED |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.040 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
