NSN 5935-00-032-9531
Part Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-032-9531 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: MRS0212P12BN006, MRS0212P12BN006, GC805CNH212BN, 5935-00-032-9531, 00-032-9531, 5935000329531, 000329531
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 01, 1972 | 00-032-9531 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

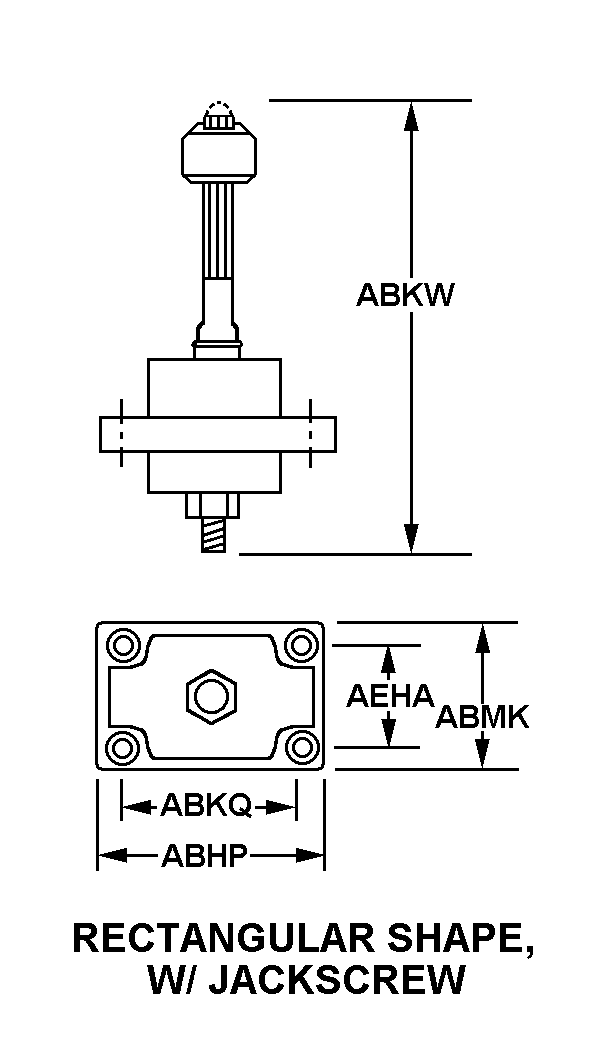

RECTANGULAR SHAPE, W/JACKSCREW
Cross Reference | NSN 5935-00-032-9531
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MRS0212P12BN006 | 53669 | DELPHI CONNECTION SYSTEMS, LLCDIV DELPHI CONNECTION SYSTEMS |
| MRS0212P12BN006 | 73293 | L-3 COMMUNICATIONS ELECTRONTECHNOLOGIES, INC. |
| GC805CNH212BN | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 5935-00-032-9531
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE, W/JACKSCREW |
| OVERALL LENGTH | 2.865 INCHES MINIMUM AND 2.885 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.490 INCHES MINIMUM AND 2.510 INCHES MAXIMUM |
| OVERALL HEIGHT | 4.100 INCHES NOMINAL |
| OVERALL WIDTH | 2.380 INCHES MINIMUM AND 2.400 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.840 INCHES MINIMUM AND 1.860 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.149 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | JACKSCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | POLARIZATION BOSS |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | THERMAL SHOCK RESISTANT |
| OPERATING TEMP RATING | -54.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
