NSN 5935-00-027-1870
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-027-1870 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 78RS8LT, 78RS8LREVB, 78RS8L, 78RS8LT, 5935-00-027-1870, 00-027-1870, 5935000271870, 000271870
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-027-1870 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP OR BOTTOM MOUNT W/METAL SADDLE

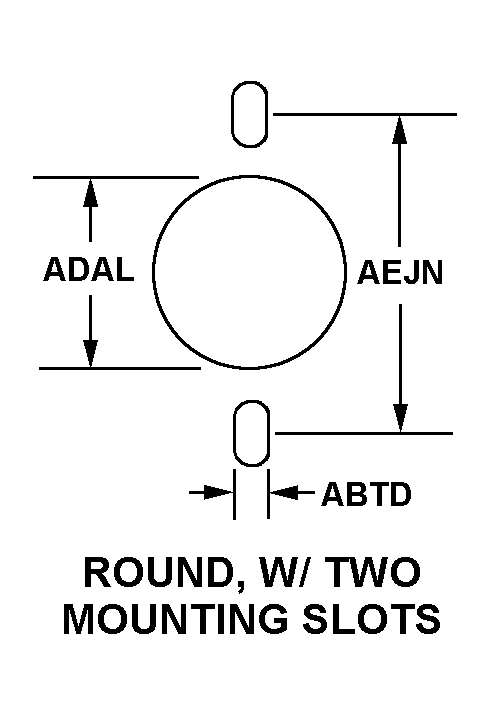

ROUND, W/TWO MOUNTING SLOTS
OCTAL .687 INCH
Cross Reference | NSN 5935-00-027-1870
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 78RS8LT | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 78RS8LREVB | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| 78RS8L | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
| 78RS8LT | 02660 | AMPHENOL CORPSPECTRA-STRIP/ITD |
Technical Data | NSN 5935-00-027-1870
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | OCTAL .687 INCH |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | TOP OR BOTTOM MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 2.156 INCHES NOMINAL |
| OVERALL HEIGHT | 0.781 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | ROUND, W/TWO MOUNTING SLOTS |
| MOUNTING SLOT WIDTH | 0.156 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.172 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.859 INCHES NOMINAL |
| POLARIZATION TYPE | CENTER KEY HOLE |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
