NSN 5935-00-026-9815
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-026-9815 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 568106, 5935-00-026-9815, 00-026-9815, 5935000269815, 000269815
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-026-9815 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

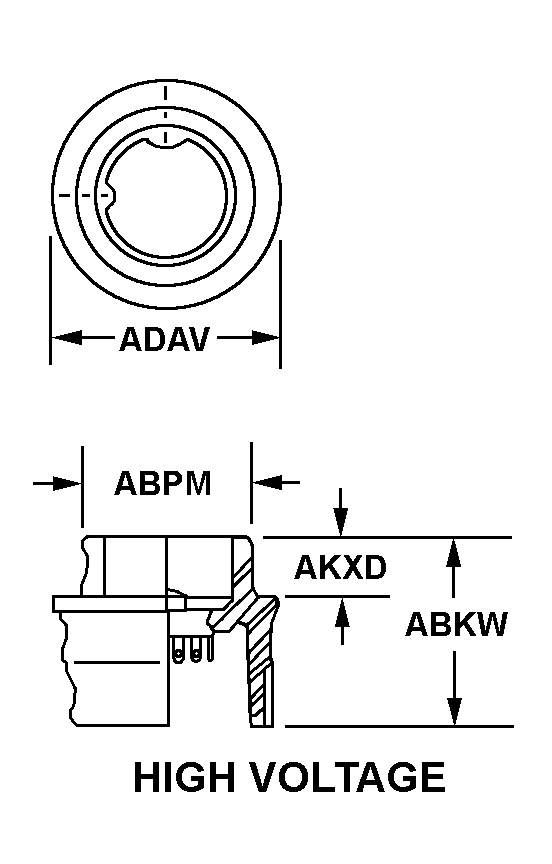

REFERENCE DRAWINGS & PICTURES
HIGH VOLTAGE
OCTAL .687 INCH
Cross Reference | NSN 5935-00-026-9815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 568106 | 57733 | STEWART-WARNER CORPORATION |
Technical Data | NSN 5935-00-026-9815
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | OCTAL .687 INCH |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | HIGH VOLTAGE |
| OVERALL HEIGHT | 1.062 INCHES MINIMUM AND 1.094 INCHES MAXIMUM |
| BODY DIAMETER | 1.245 INCHES MINIMUM AND 1.255 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.578 INCHES MINIMUM AND 0.614 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | TUBE |
| POLARIZATION TYPE | CENTER KEY HOLE |
| FURNISHED ITEMS AND QUANTITY | 2 LOCK WASHER AND 2 SCREW |
| FEATURES PROVIDED | COMPONENT RETAINING DEVICE |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
