NSN 5935-00-005-8973
Part Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-005-8973 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 3722521040, 372-2521-040, 3722521040, 372-2521-040, 5935-00-005-8973, 00-005-8973, 5935000058973, 000058973
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 11, 1972 | 00-005-8973 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

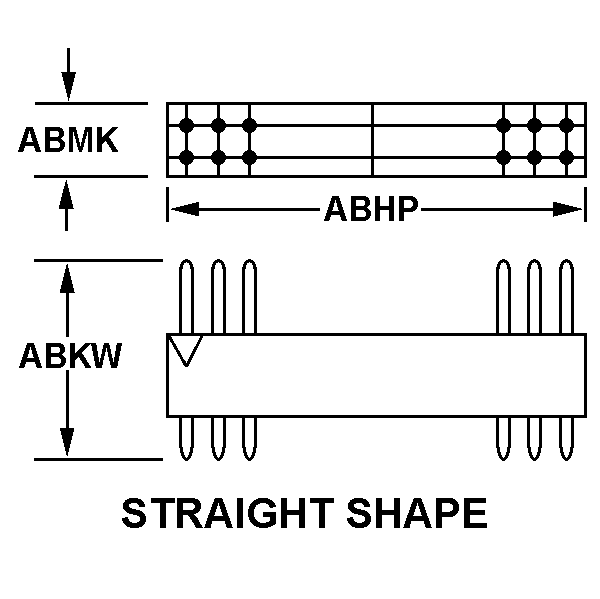

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-005-8973
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 372-2521-040 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 372-2521-040 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
Technical Data | NSN 5935-00-005-8973
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL LENGTH | 2.982 INCHES MINIMUM AND 2.998 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.513 INCHES MINIMUM AND 0.533 INCHES MAXIMUM |
| OVERALL WIDTH | 0.646 INCHES MINIMUM AND 0.664 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | FRICTION |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT |
| OPERATING TEMP RATING | -65.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
