NSN 5935-00-005-6987

Part Details | ELECTRICAL CONNECTOR BACKSHELL

5935-00-005-6987 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.

Alternate Parts: G61878, SMC568692, SM-C-568692, 5935-00-005-6987, 00-005-6987, 5935000056987, 000056987

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUN 14, 197200-005-698767169 ( BACKSHELL, ELECTRICAL CONNECTOR )
REFERENCE DRAWINGS & PICTURES

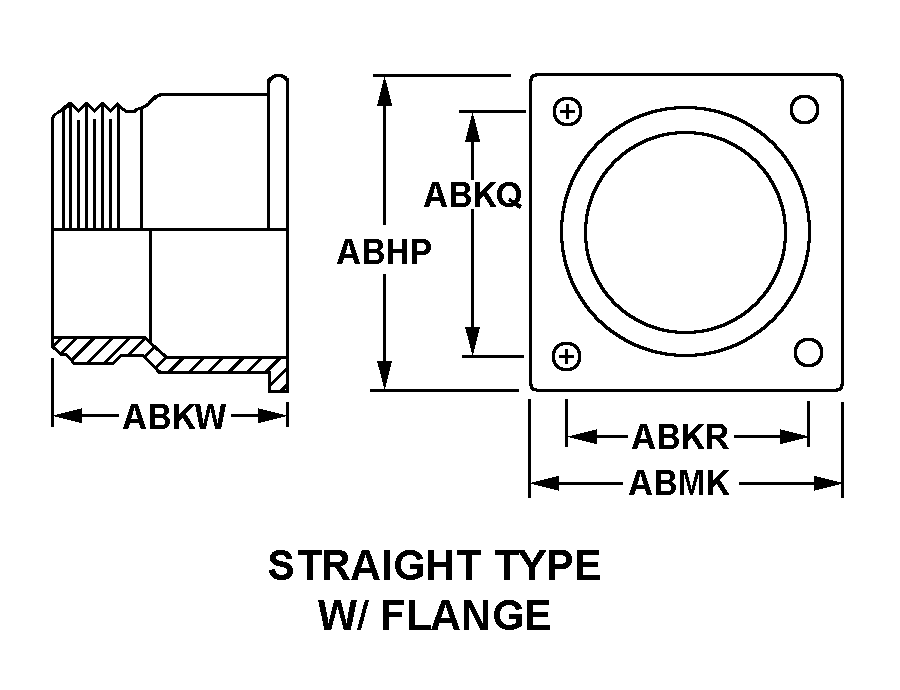

STRAIGHT TYPE W/FLANGE

BACKSHELL,ELECTRICA | 5935-00-005-6987, 000056987
Cross Reference | NSN 5935-00-005-6987
Part Number Cage Code Manufacturer
G6187806324GLENAIR, INC.
SM-C-56869280063US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS
Technical Data | NSN 5935-00-005-6987
Characteristic Specifications
STYLE DESIGNATOR STRAIGHT TYPE W/FLANGE
OVERALL LENGTH2.625 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH2.100 INCHES MINIMUM AND 2.120 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM
OVERALL HEIGHT4.062 INCHES NOMINAL
OVERALL WIDTH1.938 INCHES NOMINAL
MATERIAL ALUMINUM ALLOY
SURFACE TREATMENT CADMIUM
MOUNTING FACILITY TYPE AND QUANTITY4 THREADED HOLE
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE0.164 INCHES
THREAD CLASS2B
THREAD DIRECTION RIGHT-HAND
NOMINAL THREAD LENGTH0.500 INCHES
CABLE OPENING QUANTITY1
CABLE OPENING DIAMETER0.378 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
SEAL TYPE GROMMET AND PREFORMED PACKING
