NSN 5935-00-005-6975
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-005-6975 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 9988714, 998871-4, 14512950, 145-12-9-50, 5935-00-005-6975, 00-005-6975, 5935000056975, 000056975
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 19, 1972 | 00-005-6975 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

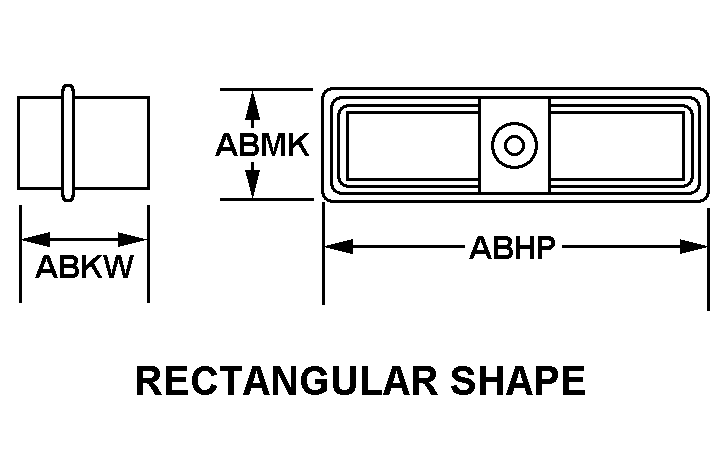

RECTANGULAR SHAPE
Cross Reference | NSN 5935-00-005-6975
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 998871-4 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
| 145-12-9-50 | 95238 | WINCHESTER ELECTRONICS CORPORATIONDBA CONTINENTAL CONNECTOR |
Technical Data | NSN 5935-00-005-6975
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE |
| OVERALL LENGTH | 0.440 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.250 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.020 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
