NSN 5935-00-005-3171
Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-005-3171 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: ZPLM1216225P, ZPLM1216-225P, 320AS16757, 320AS167-57, 5935-00-005-3171, 00-005-3171, 5935000053171, 000053171
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 07, 1972 | 00-005-3171 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

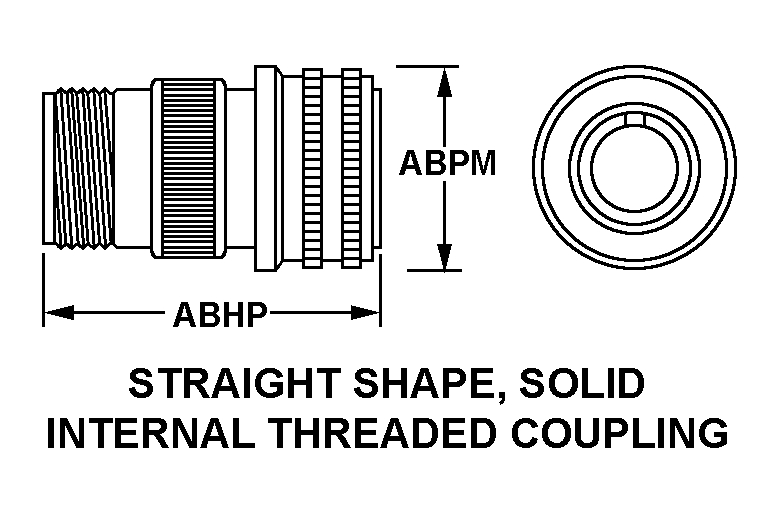

STRAIGHT SHAPE, SOLID INTERNAL THREADED COUPLING
Cross Reference | NSN 5935-00-005-3171
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ZPLM1216-225P | 49367 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE INDUSTRIAL |
| 320AS167-57 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
Technical Data | NSN 5935-00-005-3171
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SHAPE, SOLID INTERNAL THREADED COUPLING |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD CLASS | 2B |
| CABLE OPENING QUANTITY | 1 |
| SEAL TYPE | GROMMET |
| SEAL MATERIAL | RUBBER |
| SIZE DESIGNATION | 12 |
