NSN 5935-00-005-3047

Part Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-00-005-3047 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Alternate Parts: WTB54PR7SY, 53429515, 534295-15, 5935-00-005-3047, 00-005-3047, 5935000053047, 000053047

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUN 14, 197200-005-304715093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

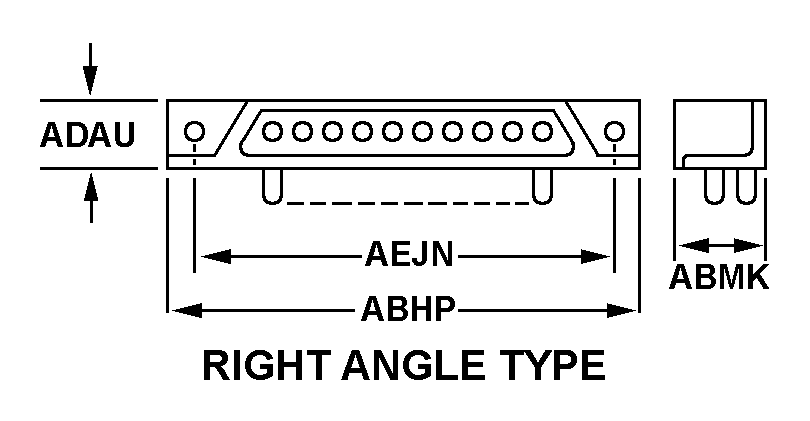

RIGHT ANGLE TYPE

CONNECTOR,RECEPTACL | 5935-00-005-3047, 000053047
Cross Reference | NSN 5935-00-005-3047
Part Number Cage Code Manufacturer
WTB54PR7SY10400AIRBORN INTERCONNECT, INC.DBA AIRBORN
534295-1596214RAYTHEON COMPANYDBA RAYTHEON
Technical Data | NSN 5935-00-005-3047
Characteristic Specifications
BODY STYLE RIGHT ANGLE TYPE
OVERALL LENGTH3.550 INCHES NOMINAL
OVERALL WIDTH0.369 INCHES NOMINAL
BODY HEIGHT0.400 INCHES NOMINAL
DISTANCE BETWEEN MOUNTING FACILITY CENTERS3.300 INCHES NOMINAL
UNTHREADED MOUNTING HOLE DIAMETER0.120 INCHES NOMINAL
CONNECTOR LOCKING METHOD FRICTION
POLARIZATION METHOD GUIDE PIN/SOCKET
MATING END QUANTITY1
ENVIRONMENTAL PROTECTION HUMIDITY RESISTANT AND SALT WATER RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT
PRECIOUS MATERIAL GOLD
PRECIOUS MATERIAL AND WEIGHT0.054 GOLD GRAINS, TROY
PRECIOUS MATERIAL AND LOCATIONCONTACT SURFACES GOLD
