NSN 5935-00-005-3046
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-005-3046 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: WTB40PR9SY, 868160138, 8681-6013-8, 53429534, 534295-34, 868160138, 8681-6013-8, 5935-00-005-3046, 00-005-3046, 5935000053046, 000053046
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 14, 1972 | 00-005-3046 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

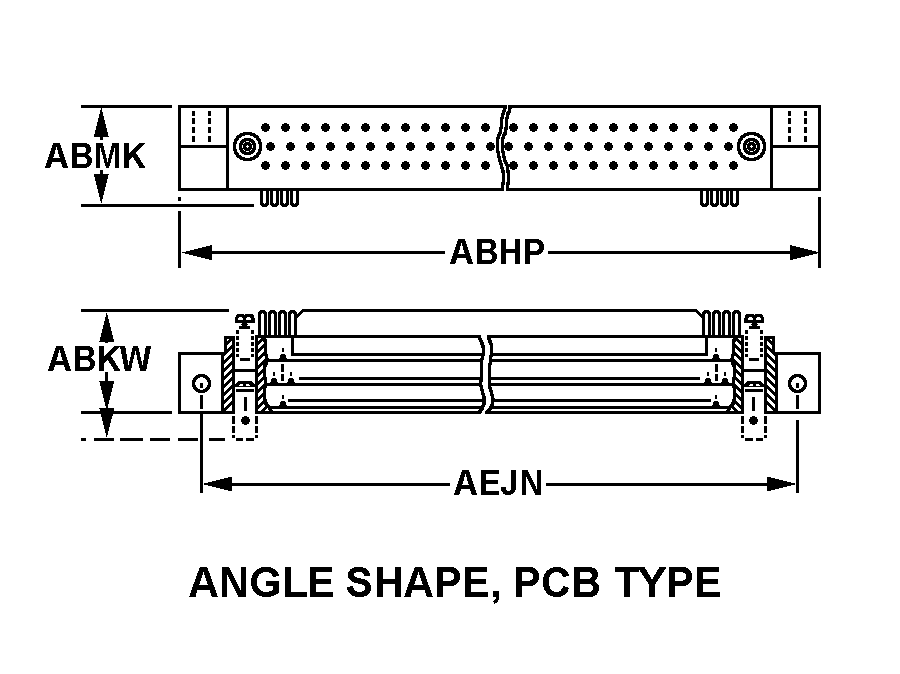

ANGLE SHAPE, PCB TYPE
Cross Reference | NSN 5935-00-005-3046
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WTB40PR9SY | 10400 | AIRBORN INTERCONNECT, INC.DBA AIRBORN |
| 8681-6013-8 | 80294 | BOURNS INSTRUMENTS INC |
| 534295-34 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| 8681-6013-8 | 11871 | RECON/OPTICAL, INC. |
Technical Data | NSN 5935-00-005-3046
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ANGLE SHAPE, PCB TYPE |
| OVERALL LENGTH | 2.840 INCHES MINIMUM AND 2.860 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.550 INCHES NOMINAL |
| OVERALL WIDTH | 0.390 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.590 INCHES MINIMUM AND 2.610 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.110 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND SALT WATER RESISTANT AND SHOCK PROOF AND THERMAL SHOCK RESISTANT AND VIBRATION PROOF |
| OPERATING TEMP RATING | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.040 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
