NSN 5935-00-005-2988
Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-005-2988 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: 01261681, 0126168-1, 7905524009, 790-5524-009, 5935-00-005-2988, 00-005-2988, 5935000052988, 000052988
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 14, 1972 | 00-005-2988 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

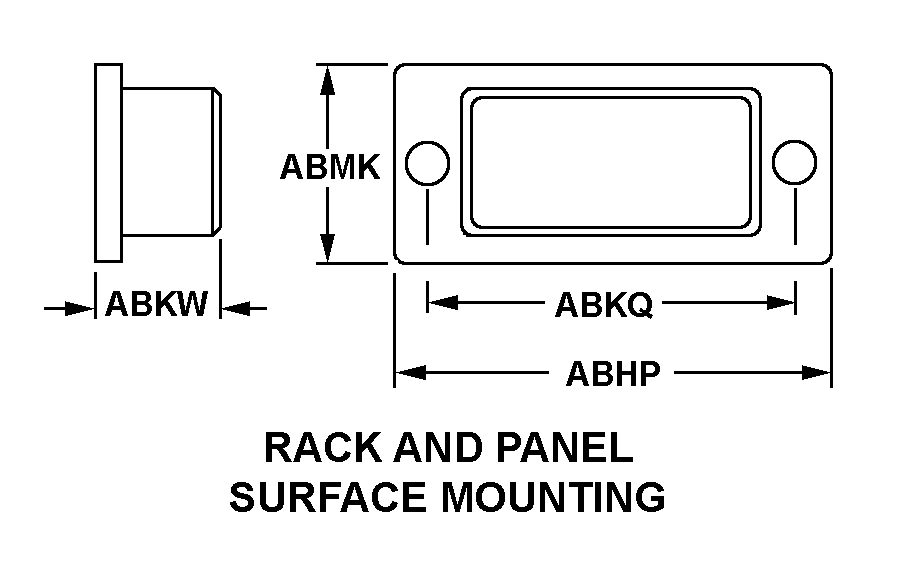

RACK AND PANEL SURFACE MOUNTING
Cross Reference | NSN 5935-00-005-2988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0126168-1 | 02227 | NAVAL ELECTRONIC SYSTEMS SECURITYENGINEERING CENTER |
| 790-5524-009 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5935-00-005-2988
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RACK AND PANEL SURFACE MOUNTING |
| OVERALL LENGTH | 7.604 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 7.150 INCHES NOMINAL |
| OVERALL WIDTH | 0.997 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BRACKET AND 3 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.146 INCHES MINIMUM AND 0.148 INCHES MAXIMUM |
