NSN 5935-00-004-6301

Part Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-00-004-6301 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Alternate Parts: 12501096, 1250-1096, 28JR1591, 28JR159-1, 5935-00-004-6301, 00-004-6301, 5935000046301, 000046301

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59MAY 27, 197200-004-630115093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

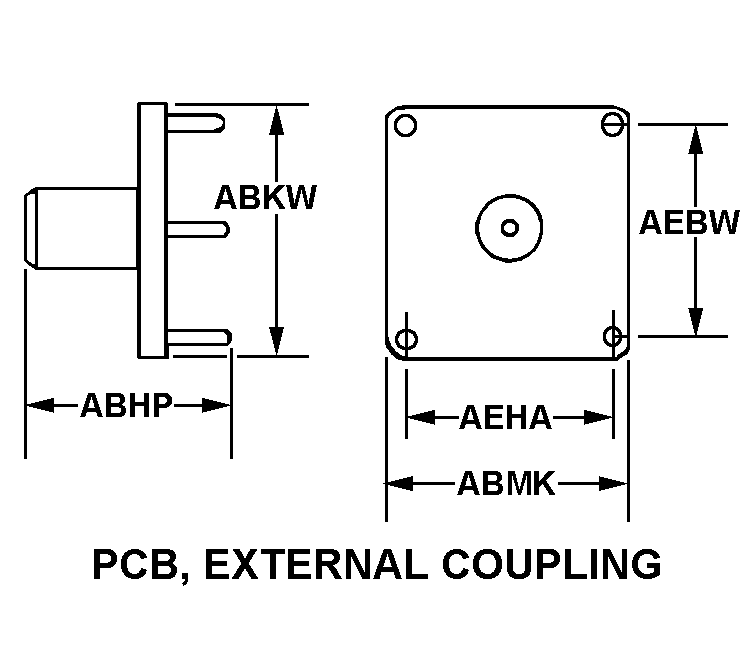

PCB, EXTERNAL COUPLING

CONNECTOR,RECEPTACL | 5935-00-004-6301, 000046301
Cross Reference | NSN 5935-00-004-6301
Part Number Cage Code Manufacturer
1250-109628480HEWLETT-PACKARD COMPANYDBA HP
28JR159-124931SPECIALTY CONNECTOR CO INC
Technical Data | NSN 5935-00-004-6301
Characteristic Specifications
BODY STYLE PCB, EXTERNAL COUPLING
OVERALL LENGTH1.266 INCHES NOMINAL
CONNECTOR LOCKING METHOD BAYONET PIN
CONNECTOR CABLE STRAIN RELIEF METHOD COMPRESSION NUT
CABLE ENTRANCE DIAMETER0.312 INCHES NOMINAL
SHELL TYPE SOLID
SHELL MATERIAL COPPER ALLOY
SHELL MATERIAL DOCUMENT AND CLASSIFICATIONQQ-B-626,COMP 22,1 TO 2 H FED SPEC SINGLE MATERIAL RESPONSE
MATING END QUANTITY1
SPECIAL FEATURESPRINTED CIRCUIT BOARD MTD
PRECIOUS MATERIAL GOLD
PRECIOUS MATERIAL AND WEIGHT0.005 GOLD GRAINS, TROY
PRECIOUS MATERIAL AND LOCATIONCONTACT SURFACE GOLD
