NSN 5935-00-004-6230
Part Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-00-004-6230 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Alternate Parts: B2000038681, B200003868-1, B2000038681, B200003868-1, 5935-00-004-6230, 00-004-6230, 5935000046230, 000046230
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 27, 1972 | 00-004-6230 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

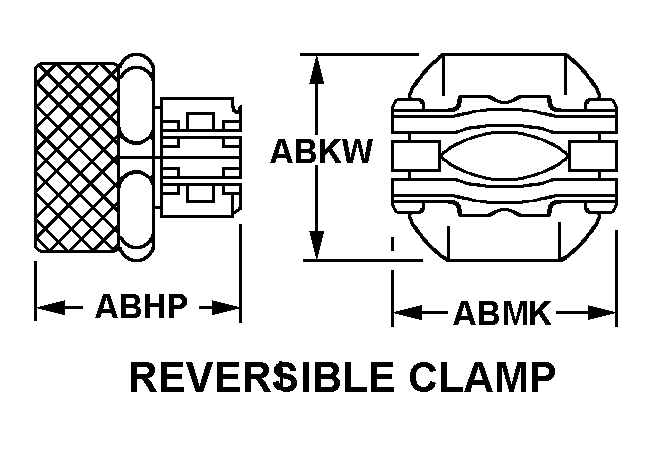

REVERSIBLE CLAMP
Cross Reference | NSN 5935-00-004-6230
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B200003868-1 | 88818 | KEARFOTT CORPORATIONDBA KEARFOTT |
| B200003868-1 | 14804 | SINGER CO THEKEARFOTT DIV |
Technical Data | NSN 5935-00-004-6230
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | REVERSIBLE CLAMP |
| OVERALL LENGTH | 0.090 INCHES NOMINAL |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
