NSN 5935-00-004-6164

Part Details | ELECTRICAL CONNECTOR INSERT

5935-00-004-6164 An insulating element with or without contact(s) designed to fit into an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; or CONNECTOR, RECEPTACLE, ELECTRICAL forming an integral liner or seat. Excludes INSULATOR (1), DISK; INSULATOR (1) PLATE; TERMINAL (1), FEEDTHRU and TERMINAL BOARD. See also CONNECTOR (as modified); CONNECTOR BODY (as modified); and INSERT MODULE, ELECTRICAL CONNECTOR.

Alternate Parts: 485433, 5935-00-004-6164, 00-004-6164, 5935000046164, 000046164

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUN 07, 197200-004-616460653 ( INSERT, ELECTRICAL CONNECTOR )
REFERENCE DRAWINGS & PICTURES

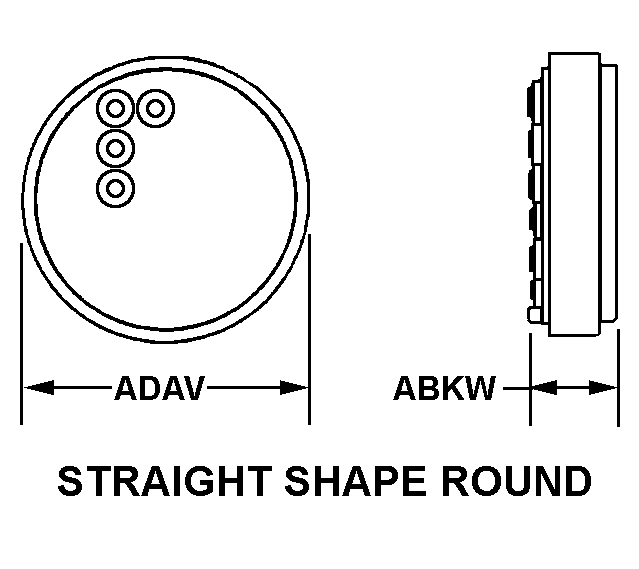

STRAIGHT SHAPE, ROUND

INSERT,ELECTRICAL C | 5935-00-004-6164, 000046164
Cross Reference | NSN 5935-00-004-6164
Part Number Cage Code Manufacturer
48543382577RAYTHEON COMPANYDBA RAYTHEON
Technical Data | NSN 5935-00-004-6164
Characteristic Specifications
BODY STYLE STRAIGHT SHAPE, ROUND
OVERALL HEIGHT0.250 INCHES NOMINAL
MATING END QUANTITY1
