NSN 5935-00-003-8099
Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-003-8099 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: 10040681223, 10-040681-223, AX96297, SMC632666, 5935-00-003-8099, 00-003-8099, 5935000038099, 000038099
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 19, 1972 | 00-003-8099 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

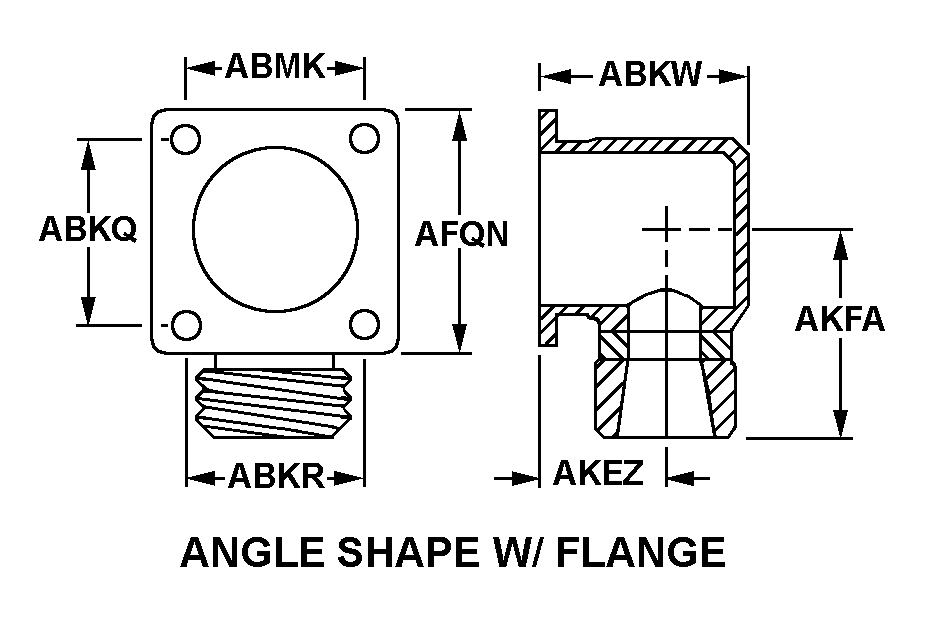

ANGLE SHAPE W/FLANGE
Cross Reference | NSN 5935-00-003-8099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-040681-223 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| AX96297 | 16758 | GENERAL MOTORS CORPDELCO ELECTRONICS DIV |
| SMC632666 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5935-00-003-8099
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE SHAPE W/FLANGE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.250 INCHES NOMINAL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.930 INCHES NOMINAL |
