NSN 5930-00-108-6890
Part Details | TOGGLE SWITCH
5930-00-108-6890 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Alternate Parts: 980F5N, 980-F5N, BA100562, BA-10056-2, 980F5N, 980-F5N, BA100562, BA-10056-2, 980F5N, 980-F5N, 980F5N, 980-F5N, 5930-00-108-6890, 00-108-6890, 5930001086890, 001086890
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-108-6890 | 00184 ( SWITCH, TOGGLE ) |
REFERENCE DRAWINGS & PICTURES

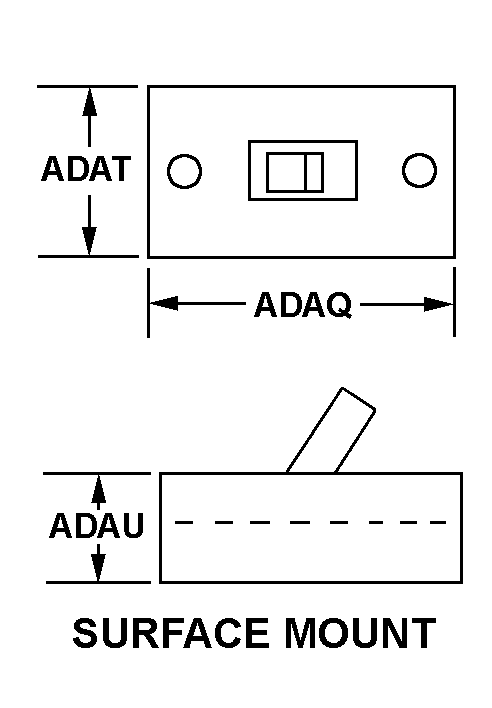

SURFACE MOUNT
ROUND
Cross Reference | NSN 5930-00-108-6890
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 980-F5N | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| BA-10056-2 | 71400 | COOPER BUSSMANN, LLCDBA COOPER BUSSMANN |
| 980-F5N | 04009 | COOPER INDUSTRIES INCCOOPER DISTRIBUTION EQUIPMENT DIV |
| BA-10056-2 | 01714 | LUCENT TECHNOLOGIES INCADVANCED TECHNOLOGY SYSTEMS |
| 980-F5N | 3B4M0 | LUCENT TECHNOLOGIES INCCORPORATE HEADQUARTERS |
| 980-F5N | 06KW9 | LUCENT TECHNOLOGIES INCDBA FEDERAL MARKETING GROUP |
Technical Data | NSN 5930-00-108-6890
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | B20.000 AMPERES RESISTIVE |
| BODY STYLE | SURFACE MOUNT |
| BODY LENGTH | 2.344 INCHES NOMINAL |
| BODY WIDTH | 1.375 INCHES NOMINAL |
| BODY HEIGHT | 1.469 INCHES NOMINAL |
| OVERALL LENGTH | 2.344 INCHES NOMINAL |
| OVERALL WIDTH | 1.375 INCHES NOMINAL |
| OVERALL HEIGHT | 2.656 INCHES NOMINAL |
| ACTUATOR STYLE | 0 ROUND |
| ACTUATOR HEIGHT | 1.187 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| SPECIAL FEATURES | TWO 8-32 THD MTG HOLES DIAGONALLY SPACED 1.313 IN. BY 0.875 IN. |
