NSN 5925-00-106-2675
Part Details | CIRCUIT BREAKER
5925-00-106-2675 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Alternate Parts: G359654, G359654, 373D645G08, 5925-00-106-2675, 00-106-2675, 5925001062675, 001062675
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 17, 1968 | 00-106-2675 | 00136 ( CIRCUIT BREAKER ) |
REFERENCE DRAWINGS & PICTURES

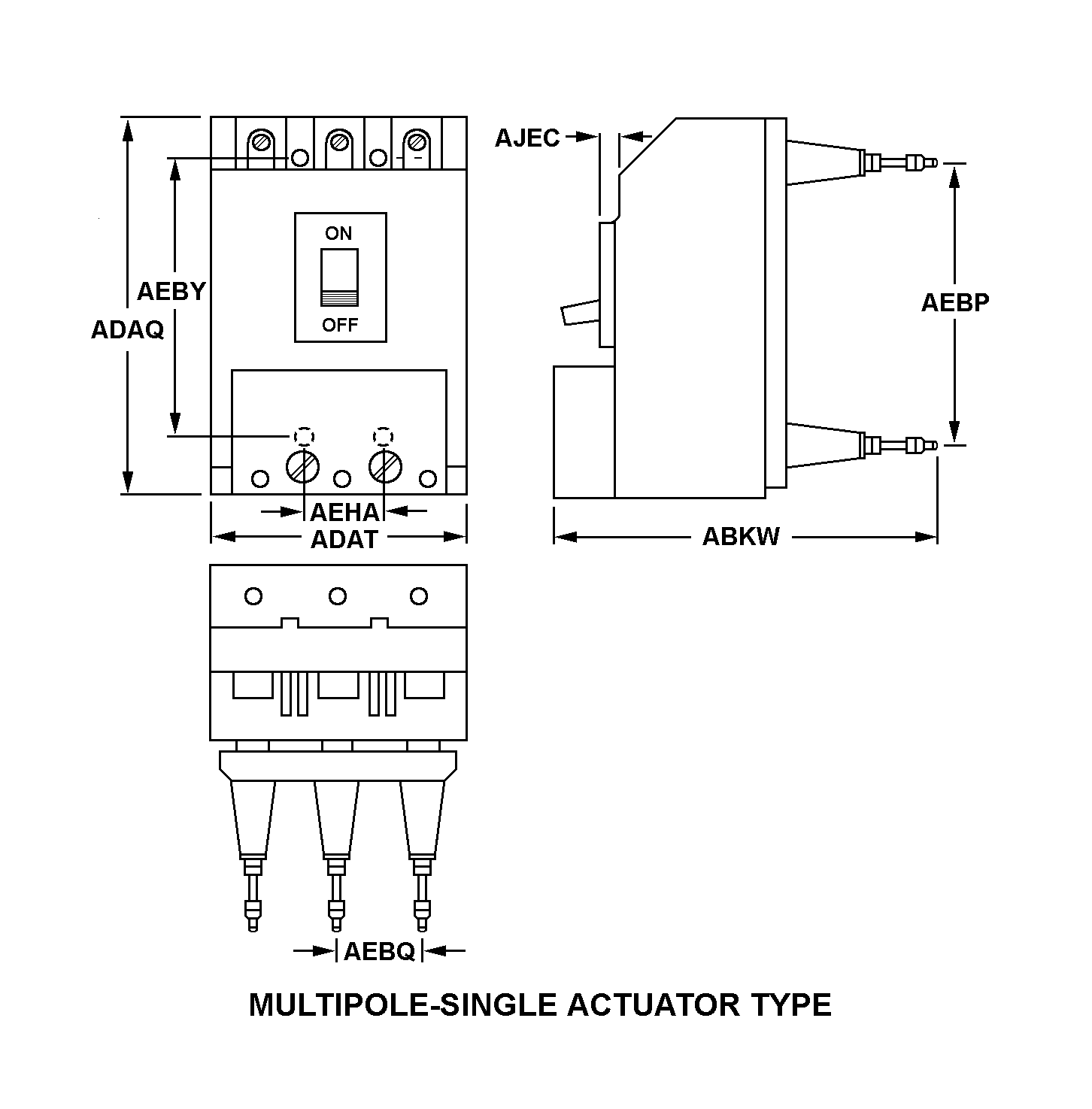

MULTIPOLE-SINGLE ACTUATOR TYPE
Cross Reference | NSN 5925-00-106-2675
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G359654 | 89946 | EATON CORPORATION |
| G359654 | 01714 | LUCENT TECHNOLOGIES INCADVANCED TECHNOLOGY SYSTEMS |
| 373D645G08 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
Technical Data | NSN 5925-00-106-2675
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 6 PIN |
| RESET METHOD | MANUAL |
| BODY STYLE | MULTIPOLE-SINGLE ACTUATOR TYPE |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| MAIN CONTACT TRIPPING MECHANISM TYPE | NONTRIP FREE |
| OVERALL HEIGHT | 5.790 INCHES NOMINAL |
| BODY LENGTH | 10.125 INCHES NOMINAL |
| BODY WIDTH | 5.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 8.876 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 1.719 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 8.438 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.719 INCHES NOMINAL |
| BOSS HEIGHT | 0.500 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 TOGGLE |
| ACTUATOR FUNCTION | TRIP-RESET |
| ACTUATOR POSITION DESIGNATION | AT POLE TWO |
| AUXILIARY SWITCH FUNCTION AND QUANTITY | 3 CONTROL |
| SWITCH LOCATION AND POSITION DESIGNATION | INTERNAL AT POLE THREE |
| SWITCH CONTACT ARRANGEMENT | SINGLE POLE, DOUBLE THROW |
| SWITCH CURRENT RATING AND TYPE IN AMPS | 10.0 AC |
| SWITCH VOLTAGE RATING AND TYPE IN VOLTS | 120.0 AC |
| SWITCH TERMINAL TYPE | WIRE LEAD |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | FUNGUS RESISTANT AND MOISTURE RESISTANT |
| SPECIAL FEATURES | SILVER MAIN AND ARCING CONTACTS |
| STORAGE TYPE | E ANY ACCEPTABLE |
