Part Details | CIRCUIT BREAKER
5925-00-089-4435 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Alternate Parts: A1B320, A1B320, 5925-00-089-4435, 00-089-4435, 5925000894435, 000894435
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 13, 1967 | 00-089-4435 | 00136 ( CIRCUIT BREAKER ) |
REFERENCE DRAWINGS & PICTURES

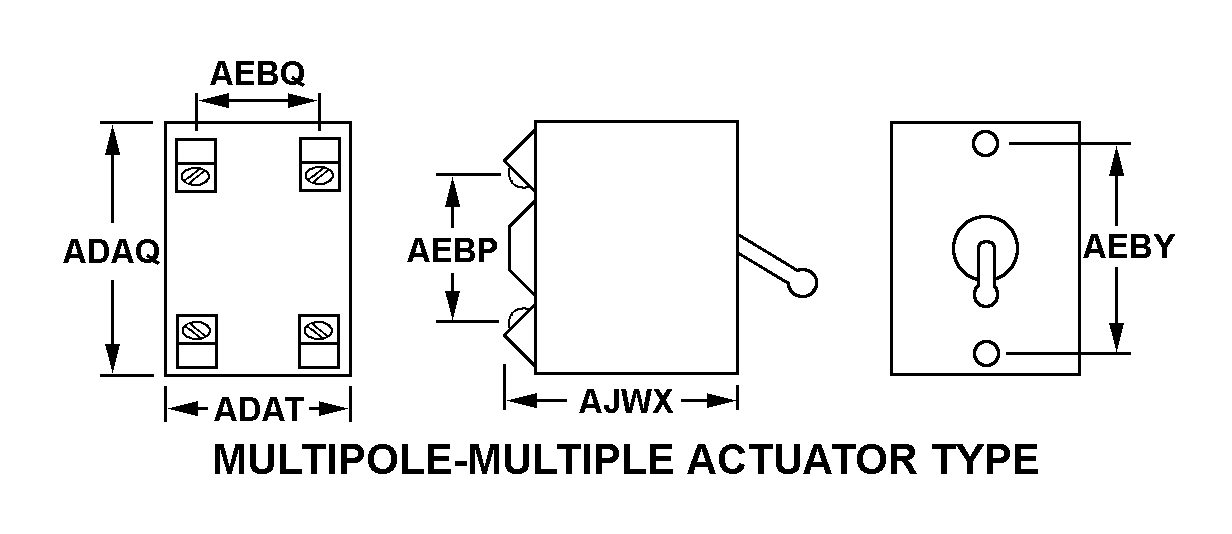

MULTIPOLE-MULTIPLE ACTUATOR TYPE
Cross Reference | NSN 5925-00-089-4435
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A1B320 | 63637 | SCHNEIDER ELECTRIC USA, INC.DBA SCHNEIDER ELECTRIC |
| A1B320 | 14280 | SCHNEIDER ELECTRIC USA, INC.DBA SCHNEIDER ELECTRIC |
Technical Data | NSN 5925-00-089-4435
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 6 COMPRESSION |
| RESET METHOD | MANUAL |
| BODY STYLE | MULTIPOLE-MULTIPLE ACTUATOR TYPE |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 TERMINAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| BODY LENGTH | 3.000 INCHES NOMINAL |
| BODY WIDTH | 2.230 INCHES MINIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 2.050 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 0.750 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.250 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 3.150 INCHES NOMINAL |
| MANUAL ACTUATOR TYPE AND QUANTITY | 1 PUSH-PULL |
| ACTUATOR FUNCTION | TRIP-RESET |
| ACTUATOR POSITION DESIGNATION | AT POLE TWO |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | GENERAL PURPOSE |
| STORAGE TYPE | E ANY ACCEPTABLE |
| FRAGILITY FACTOR | MODERATELY RUGGED |
