NSN 5920-00-256-1086

Part Details | RECEPTACLE FUSEHOLDER

5920-00-256-1086 A fuseholder which is specifically designed to accommodate one or more FUSE, PLUG. Excludes FUSEHOLDER, BLOCK.

Alternate Parts: WF870, 5920-00-256-1086, 00-256-1086, 5920002561086, 002561086

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-256-108628910 ( FUSEHOLDER, RECEPTACLE )
REFERENCE DRAWINGS & PICTURES

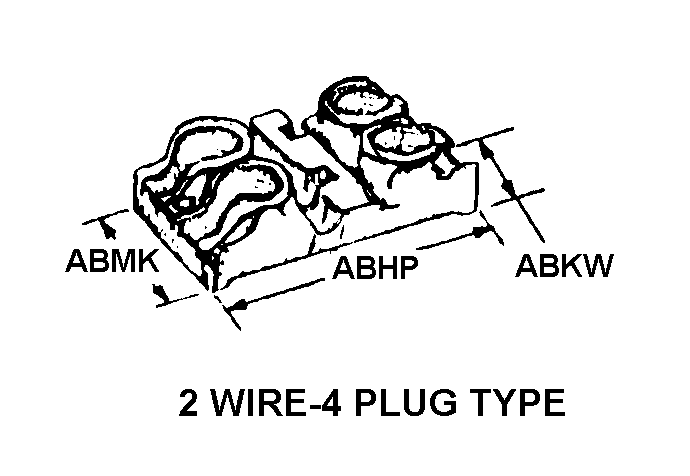

2 WIRE-4 PLUG TYPE

FUSEHOLDER,RECEPTAC | 5920-00-256-1086, 002561086
Cross Reference | NSN 5920-00-256-1086
Part Number Cage Code Manufacturer
WF87081348FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES
Technical Data | NSN 5920-00-256-1086
Characteristic Specifications
FUSE ACCOMMODATION QUANTITY4
CURRENT CARRYING RATING IN AMPS30.0
VOLTAGE IN VOLTS125.0
TERMINAL TYPE AND QUANTITY7 SCREW
CONTACT MATERIAL BRASS
BODY STYLE 2 WIRE-4 PLUG TYPE
OVERALL LENGTH6.312 INCHES NOMINAL
OVERALL HEIGHT1.531 INCHES NOMINAL
OVERALL WIDTH2.938 INCHES NOMINAL
MOUNTING HOLE QUANTITY2
INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY2 POLE, DOUBLE BRANCH, FUSED
SPECIAL FEATURESMOUNTING HOLES 8-32 IN. DIA,SPACED 5-5/16 IN. C TO C
NONDEFINITIVE SPEC/STD DATA1 TYPE
