NSN 5920-00-240-4088

Part Details | RECEPTACLE FUSEHOLDER

5920-00-240-4088 A fuseholder which is specifically designed to accommodate one or more FUSE, PLUG. Excludes FUSEHOLDER, BLOCK.

Alternate Parts: SRD1610, SRD1-6/10, 5920-00-240-4088, 00-240-4088, 5920002404088, 002404088

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-240-408828910 ( FUSEHOLDER, RECEPTACLE )
REFERENCE DRAWINGS & PICTURES

SINGLE PLUG TYPE

FUSEHOLDER,RECEPTAC | 5920-00-240-4088, 002404088

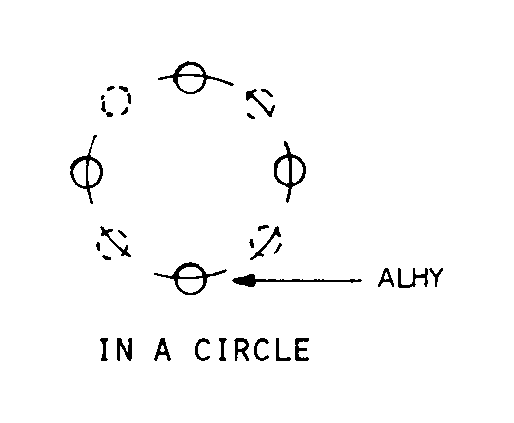

IN A CIRCLE

FUSEHOLDER,RECEPTAC | 5920-00-240-4088, 002404088
Cross Reference | NSN 5920-00-240-4088
Part Number Cage Code Manufacturer
SRD1-6/1071400COOPER BUSSMANN, LLCDBA COOPER BUSSMANN
Technical Data | NSN 5920-00-240-4088
Characteristic Specifications
FUSE ACCOMMODATION QUANTITY1
CURRENT CARRYING RATING IN AMPS30.0
VOLTAGE IN VOLTS125.0
FUSE TERMINAL TYPE ACCOMMODATED SCREW BASE
TERMINAL TYPE AND QUANTITY2 WIRE LEAD
WIRE LEAD LENGTH8.000 INCHES NOMINAL
CONTACT MATERIAL BERYLLIUM COPPER
CONTACT SURFACE TREATMENT ANY ACCEPTABLE
BODY STYLE SINGLE PLUG TYPE
OVERALL HEIGHT0.985 INCHES NOMINAL
OVERALL DIAMETER1.500 INCHES NOMINAL
MOUNTING HOLE STYLE IN A CIRCLE
MOUNTING HOLE QUANTITY1
INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY1 POLE, SINGLE BRANCH, FUSED
TERMINAL MATERIAL SOLDER DIP
BODY MATERIAL CERAMIC
