NSN 5920-00-228-4442

Part Details | RECEPTACLE FUSEHOLDER

5920-00-228-4442 A fuseholder which is specifically designed to accommodate one or more FUSE, PLUG. Excludes FUSEHOLDER, BLOCK.

Alternate Parts: WF870, 5920-00-228-4442, 00-228-4442, 5920002284442, 002284442

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-228-444228910 ( FUSEHOLDER, RECEPTACLE )
REFERENCE DRAWINGS & PICTURES

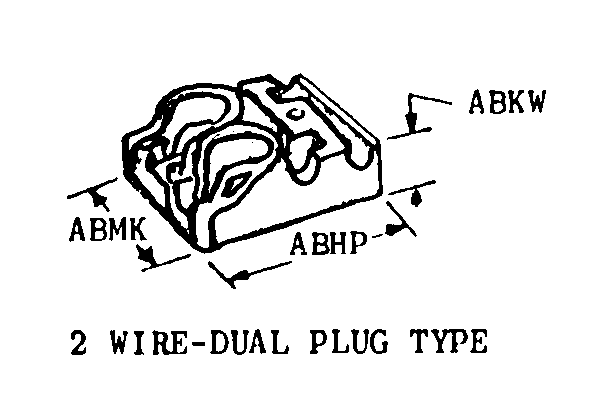

2 WIRE-DUAL PLUG TYPE

FUSEHOLDER,RECEPTAC | 5920-00-228-4442, 002284442
Cross Reference | NSN 5920-00-228-4442
Part Number Cage Code Manufacturer
WF87081348FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES
Technical Data | NSN 5920-00-228-4442
Characteristic Specifications
FUSE ACCOMMODATION QUANTITY2
CURRENT CARRYING RATING IN AMPS30.0
VOLTAGE IN VOLTS125.0
TERMINAL TYPE AND QUANTITY4 SCREW
CONTACT MATERIAL BRASS
BODY STYLE 2 WIRE-DUAL PLUG TYPE
OVERALL LENGTH3.594 INCHES NOMINAL
OVERALL HEIGHT1.500 INCHES NOMINAL
OVERALL WIDTH2.938 INCHES NOMINAL
MOUNTING HOLE QUANTITY2
INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY2 POLE, SINGLE BRANCH, FUSED
SPECIAL FEATURESMOUNTING HOLES 0.20 IN. DIA.,SPACED 2.281 IN. C TO C
NONDEFINITIVE SPEC/STD DATA1 TYPE
