NSN 5920-00-198-4302
Part Details | BLOCK FUSEHOLDER
5920-00-198-4302 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.
Alternate Parts: 9108323G1, 1C5898, K9108323G1, 9108323G1, 910823G1, 910B823G1, 229B3559022, 229B3559-022, 157B9527PC12, 108323G1, 9108323G1, 14791205 ITEM 3, 480804PC24, 48080424, 480804-24, 9108323G1, 9103823G1, 229B3569G2AS417, 229B3569G2AS4-17, 229B3560G2S4 PART 015, 5920-00-198-4302, 00-198-4302, 5920001984302, 001984302
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 22, 1969 | 00-198-4302 | 28908 ( FUSEHOLDER, BLOCK ) |

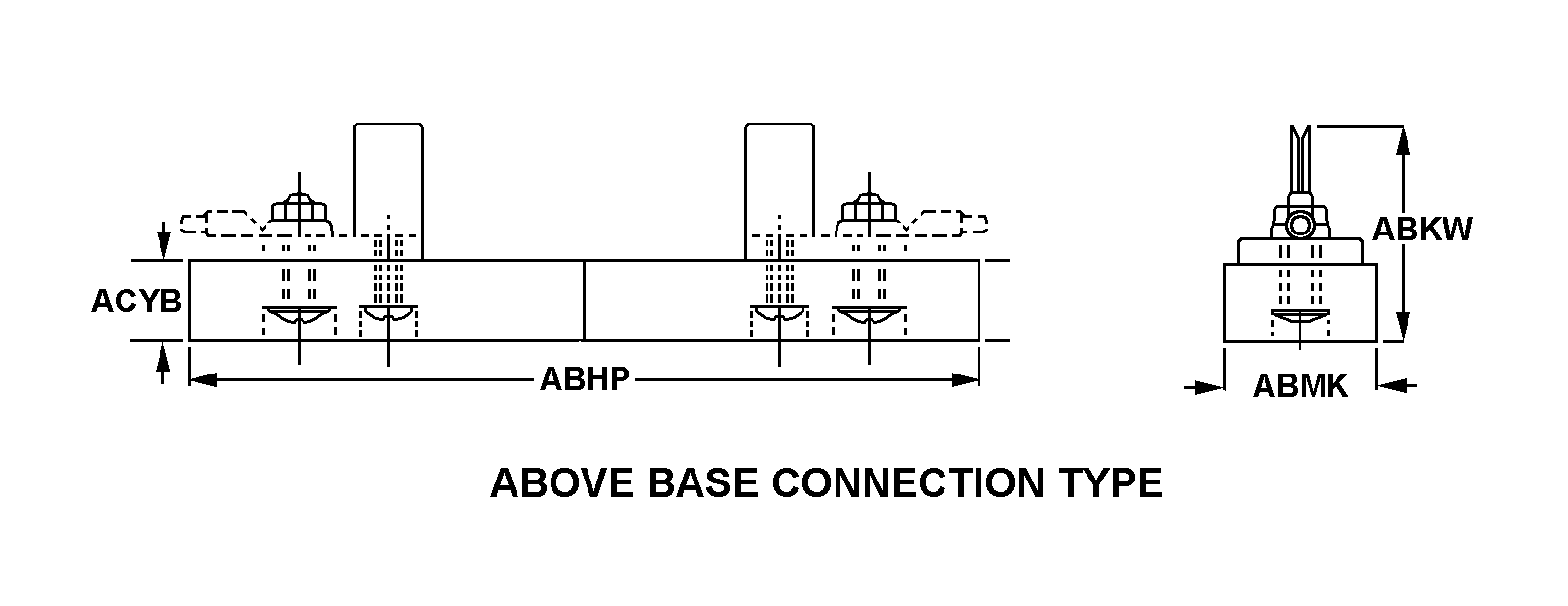

REFERENCE DRAWINGS & PICTURES
ABOVE BASE CONNECTION TYPE
ONE HOLE MOUNTING
Cross Reference | NSN 5920-00-198-4302
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9108323G1 | 97993 | GENERAL DYNAMICS DEFENSE SYSTEMSINC. |
| 1C5898 | 01288 | GENERAL ELECTRIC CODIRECT CURRENT MOTOR AND GENERATOR |
| K9108323G1 | 01288 | GENERAL ELECTRIC CODIRECT CURRENT MOTOR AND GENERATOR |
| 9108323G1 | 02989 | GENERAL ELECTRIC COGE DRIVE SYSTEMS |
| 910823G1 | 02989 | GENERAL ELECTRIC COGE DRIVE SYSTEMS |
| 910B823G1 | 02989 | GENERAL ELECTRIC COGE DRIVE SYSTEMS |
| 229B3559-022 | 02989 | GENERAL ELECTRIC COGE DRIVE SYSTEMS |
| 157B9527PC12 | 02989 | GENERAL ELECTRIC COGE DRIVE SYSTEMS |
| 108323G1 | 02989 | GENERAL ELECTRIC COGE DRIVE SYSTEMS |
| 9108323G1 | 03497 | GENERAL ELECTRIC COOUTDOOR BREAKER BUSINESS SECTION |
| 14791205 ITEM 3 | 0DHG4 | GULF COAST HOLDINGS INCDBA UNIDYNAMICS |
| 480804PC24 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 480804-24 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 9108323G1 | 63743 | WARD LEONARD CT LLC |
| 9103823G1 | 63743 | WARD LEONARD CT LLC |
| 229B3569G2AS4-17 | 63743 | WARD LEONARD CT LLC |
| 229B3560G2S4 PART 015 | 63743 | WARD LEONARD CT LLC |
Technical Data | NSN 5920-00-198-4302
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 300.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | ABOVE BASE CONNECTION TYPE |
| OVERALL LENGTH | 3.062 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| BASE THICKNESS | 0.750 INCHES NOMINAL |
| MOUNTING HOLE STYLE | ONE HOLE MOUNTING |
| MOUNTING HOLE QUANTITY | 1 |
| MOUNTING HOLE DIAMETER | 0.438 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 2.250 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.562 INCHES NOMINAL |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 1 POLE, MAINLINE, FUSED |
| TERMINAL MATERIAL | BRASS |
| BODY MATERIAL | CERAMIC |
