NSN 5920-00-178-1626
Part Details | FUSE BOX
5920-00-178-1626 An enclosure which includes, mounts, and protects one or more FUSEHOLDER. It is designed for and may include a cover. May also include electrical fuses, mounting hardware, lock(s), conduit fittings, and terminal board(s) used specifically for terminating the fuses or fuseholders. For boxes containing combinations of different electrical devices, such as switches, jacks, fuseholders, connectors, circuit breakers, terminal boards, and the like, see DISTRIBUTION BOX. For boxes designed to mount but which do not include fuseholders, see JUNCTION BOX. Excludes CHAMBER, CABLE TERMINAL; FUSEHOLDER; and TERMINAL BOX.
Alternate Parts: 9S4877L ALT.J, 9S-4877-L ALT.J, 9S4877LALT5, 9-S-4877-LALT5, MILF246464, MIL-F-24646/4, MILDTL246464, MIL-DTL-24646/4, SYM 545NM, M246464003SYM545, M24646/4-003SYM545, M246464003, M24646/4-003, 9S4877LALT5, 9-S-4877-LALT5, 9S4877LALTJ, 9-S-4877-LALTJ, 9S4877L, 9-S-4877-L, 9S4877L ALT.J, 9S-4877-L ALT.J, 9S4877L ALTERATION5, 9S4877L ALT.J, 9S-4877-L ALT.J, 030AMPSSYMBOL545, 0-30AMPS-SYMBOL545, 9S4877L ALT.J, 9S-4877-L ALT.J, 9S4877LALT5, 9-S-4877-LALT5, 5920-00-178-1626, 00-178-1626, 5920001781626, 001781626
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-178-1626 | 14926 ( FUSE BOX ) |
REFERENCE DRAWINGS & PICTURES

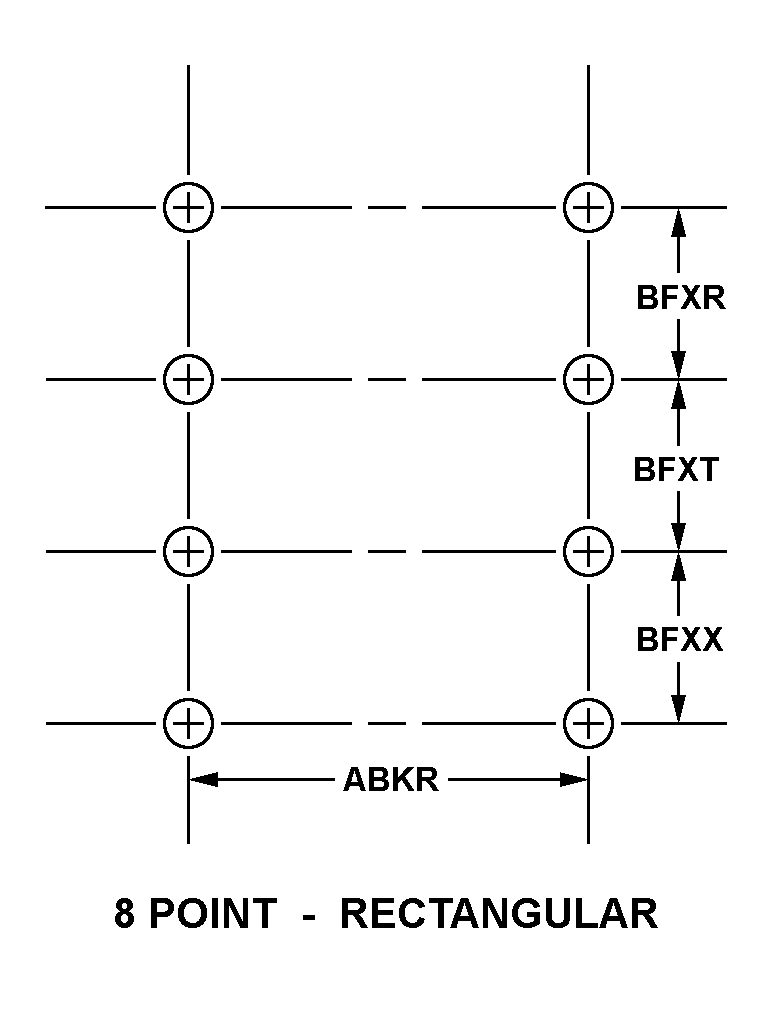

8 POINT-RECTANGULAR
RECTANGULAR, SURFACE MOUNTING
Cross Reference | NSN 5920-00-178-1626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9S-4877-L ALT.J | 56772 | DA LO INDUSTRIES INCDIV DA LO INDUSTRIES DIVISION OF |
| 9-S-4877-LALT5 | 16236 | DLA LAND AND MARITIMEDBA ENGINEERING AND TECHNICAL |
| MIL-F-24646/4 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-DTL-24646/4 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| SYM 545NM | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M24646/4-003SYM545 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M24646/4-003 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 9-S-4877-LALT5 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| 9-S-4877-LALTJ | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 9-S-4877-L | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 9S-4877-L ALT.J | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9S4877L ALTERATION5 | 77096 | PALMER ELECTRIC CODIV TABET MFG CO INC |
| 9S-4877-L ALT.J | 77096 | PALMER ELECTRIC CODIV TABET MFG CO INC |
| 0-30AMPS-SYMBOL545 | 77096 | PALMER ELECTRIC CODIV TABET MFG CO INC |
| 9S-4877-L ALT.J | 52115 | TE CONNECTIVITY SEACON PHOENIX INC.DIV TE CONNECTIVITY SEACON PHOENIX |
| 9-S-4877-LALT5 | 52115 | TE CONNECTIVITY SEACON PHOENIX INC.DIV TE CONNECTIVITY SEACON PHOENIX |
Technical Data | NSN 5920-00-178-1626
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR, SURFACE MOUNTING |
| OVERALL DEPTH | 4.500 INCHES NOMINAL |
| OVERALL HEIGHT | 22.156 INCHES NOMINAL |
| OVERALL WIDTH | 12.156 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |
| MOUNTING METHOD | UNTHREADED HOLE |
| STANDARD MOUNTING PATTERN DESIGNATOR | 8 POINT-RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 10.500 INCHES NOMINAL |
| FIRST CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE HEIGHT | 6.000 INCHES NOMINAL |
| SECOND CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO THE HEIGHT | 6.000 INCHES NOMINAL |
| THIRD CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 6.000 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.500 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | THREE WIRE THREE PHASE |
| MAIN LINE MAXIMUM CURRENT RATING IN AMPS | 30.0 |
| FUSE TYPE AND QUANTITY ACCOMMODATED | 9 CARTRIDGE FERRULE |
| FEATURES PROVIDED | COVER |
| TEST DATA DOCUMENT | 81349-MIL-F-24646 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-24646 TO 4 GOVERNMENT SPECIFICATION |
