NSN 5920-00-170-4247
Part Details | CARTRIDGE FUSE
5920-00-170-4247 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Alternate Parts: JCW2E, 5920-00-170-4247, 00-170-4247, 5920001704247, 001704247
Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | AUG 25, 1972 | 00-170-4247 | 00248 ( FUSE, CARTRIDGE ) |
REFERENCE DRAWINGS & PICTURES

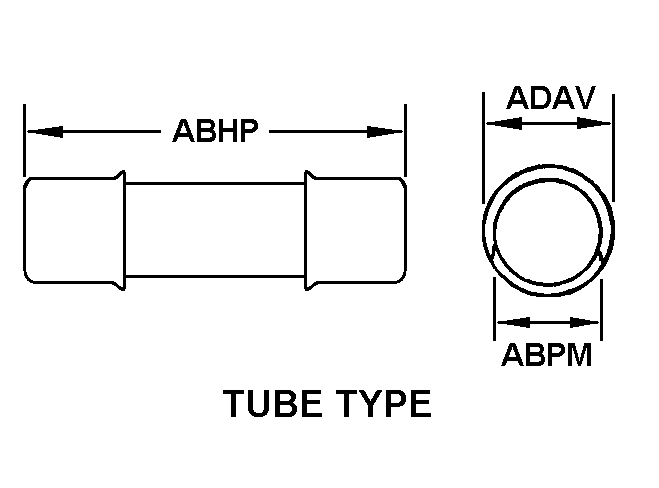

TUBE TYPE
Cross Reference | NSN 5920-00-170-4247
Part Number | Cage Code | Manufacturer |
---|---|---|
JCW2E | 71400 | COOPER BUSSMANN, LLCDBA COOPER BUSSMANN |
Technical Data | NSN 5920-00-170-4247
Characteristic | Specifications |
---|---|
BODY STYLE | TUBE TYPE |
OVERALL LENGTH | 7.312 INCHES NOMINAL |
OVERALL DIAMETER | 1.562 INCHES NOMINAL |
CONTINUOUS CURRENT RATING IN AMPS | 2.000 |
MAXIMUM VOLTAGE RATING IN VOLTS | 4800.0 AC AND 4800.0 DC |
CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 20000.0 |
INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
TERMINAL SURFACE TREATMENT | NICKEL |
FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
CASE MATERIAL | FIBER |
TERMINAL MATERIAL | BRASS |
