NSN 5920-00-131-9781
Part Details | CARTRIDGE FUSE
5920-00-131-9781 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Alternate Parts: ACK1, 13211, 1321-1, 5920-00-131-9781, 00-131-9781, 5920001319781, 001319781
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-131-9781 | 00248 ( FUSE, CARTRIDGE ) |
REFERENCE DRAWINGS & PICTURES

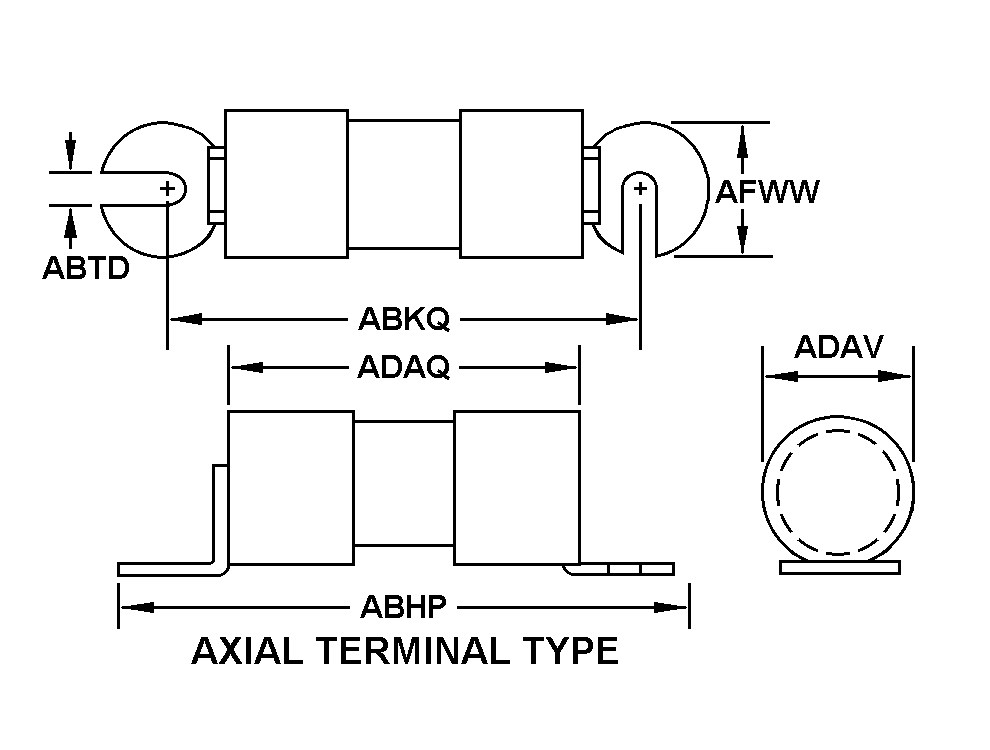

AXIAL TERMINAL TYPE
Cross Reference | NSN 5920-00-131-9781
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ACK1 | 71400 | COOPER BUSSMANN, LLCDBA COOPER BUSSMANN |
| 1321-1 | 75915 | LITTELFUSE, INC. |
Technical Data | NSN 5920-00-131-9781
| Characteristic | Specifications |
|---|---|
| BODY STYLE | AXIAL TERMINAL TYPE |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.250 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.266 INCHES NOMINAL |
| BODY LENGTH | 1.625 INCHES NOMINAL |
| OVERALL DIAMETER | 0.562 INCHES NOMINAL |
| TERMINAL WIDTH | 0.500 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 1.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC AND 125.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | TIME DELAY |
| CIRCUIT OVER-CURRENT INTERRUPTION DELAY TIME IN SECONDS | 100.0 200 PCT OF CURRENT RATING AND 13.0 400 PCT OF CURRENT RATING |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 500.0 |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| TERMINAL SURFACE TREATMENT | NICKEL |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
