NSN 5920-00-107-2798

Part Details | RECEPTACLE FUSEHOLDER

5920-00-107-2798 A fuseholder which is specifically designed to accommodate one or more FUSE, PLUG. Excludes FUSEHOLDER, BLOCK.

Alternate Parts: 296501, 29650-1, 2M, 5920-00-107-2798, 00-107-2798, 5920001072798, 001072798

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59AUG 02, 196800-107-279828910 ( FUSEHOLDER, RECEPTACLE )
REFERENCE DRAWINGS & PICTURES

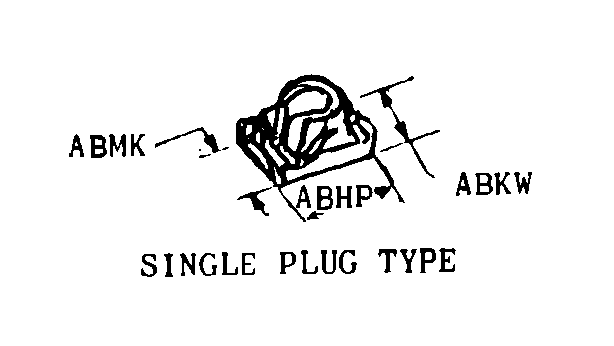

SINGLE PLUG TYPE

FUSEHOLDER,RECEPTAC | 5920-00-107-2798, 001072798

IN-LINE ALONG THE LENGTH

FUSEHOLDER,RECEPTAC | 5920-00-107-2798, 001072798
Cross Reference | NSN 5920-00-107-2798
Part Number Cage Code Manufacturer
29650-104009COOPER INDUSTRIES INCCOOPER DISTRIBUTION EQUIPMENT DIV
2M74006RELIANCE COMM/TEC CORPLORAIN PRODUCTS DIV
Technical Data | NSN 5920-00-107-2798
Characteristic Specifications
FUSE ACCOMMODATION QUANTITY1
CURRENT CARRYING RATING IN AMPS30.0
VOLTAGE IN VOLTS125.0
FUSE TERMINAL TYPE ACCOMMODATED SCREW BASE
TERMINAL TYPE AND QUANTITY4 SCREW
CONTACT MATERIAL ANY ACCEPTABLE
CONTACT SURFACE TREATMENT ANY ACCEPTABLE
BODY STYLE SINGLE PLUG TYPE
OVERALL LENGTH2.562 INCHES NOMINAL
OVERALL HEIGHT1.469 INCHES NOMINAL
OVERALL WIDTH2.281 INCHES NOMINAL
MOUNTING HOLE STYLE IN-LINE ALONG THE LENGTH
CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH1.750 INCHES NOMINAL
MOUNTING HOLE QUANTITYA1$$A1
MOUNTING HOLE DIAMETER0.219 INCHES MINIMUM AND 0.344 INCHES MAXIMUM
INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY1 POLE, MAINLINE, SOLID NEUTRAL
BODY MATERIAL CERAMIC
