NSN 5920-00-103-5267
Part Details | CARTRIDGE FUSE
5920-00-103-5267 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Alternate Parts: GLQ3, FUS458, FUS-458, FUS198, FUS-198, 5920-00-103-5267, 00-103-5267, 5920001035267, 001035267
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 10, 1968 | 00-103-5267 | 00248 ( FUSE, CARTRIDGE ) |

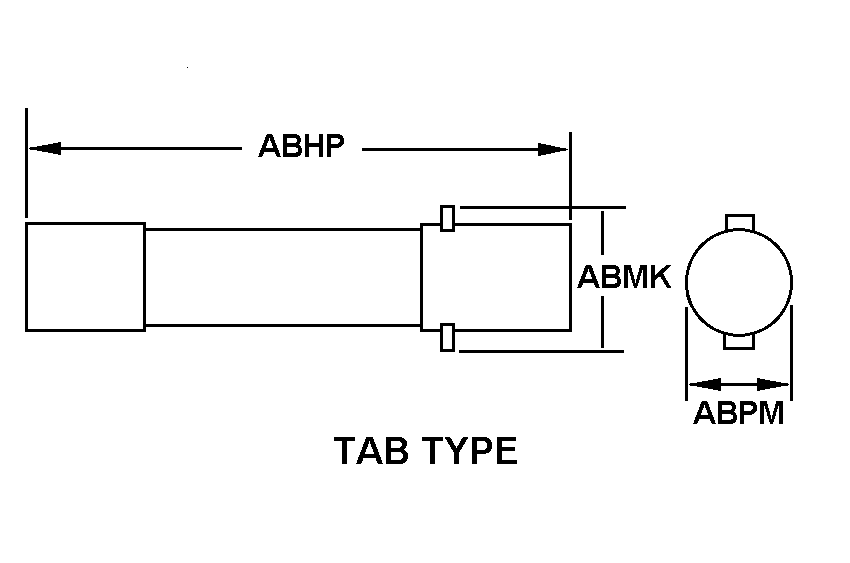

REFERENCE DRAWINGS & PICTURES
TAB TYPE
Cross Reference | NSN 5920-00-103-5267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GLQ3 | 71400 | COOPER BUSSMANN, LLCDBA COOPER BUSSMANN |
| FUS-458 | 60532 | TRANE U.S. INC.DBA TRANE |
| FUS-198 | 60532 | TRANE U.S. INC.DBA TRANE |
Technical Data | NSN 5920-00-103-5267
| Characteristic | Specifications |
|---|---|
| BODY STYLE | TAB TYPE |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.255 INCHES NOMINAL |
| BODY DIAMETER | 0.250 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 3.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 300.0 AC AND 300.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| TERMINAL SURFACE TREATMENT | NICKEL |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
