NSN 5920-00-091-9435

Part Details | FUSE BOX

5920-00-091-9435 An enclosure which includes, mounts, and protects one or more FUSEHOLDER. It is designed for and may include a cover. May also include electrical fuses, mounting hardware, lock(s), conduit fittings, and terminal board(s) used specifically for terminating the fuses or fuseholders. For boxes containing combinations of different electrical devices, such as switches, jacks, fuseholders, connectors, circuit breakers, terminal boards, and the like, see DISTRIBUTION BOX. For boxes designed to mount but which do not include fuseholders, see JUNCTION BOX. Excludes CHAMBER, CABLE TERMINAL; FUSEHOLDER; and TERMINAL BOX.

Alternate Parts: 400172101, 400172-101, 400115, 9000S620274028T03, 9000-S6202-74028-T03, 9000S620274028T03, 9000-S6202-74028-T03, 9000S620274028PC1 TO 3, 9000S6202-74028PC1 TO 3, 5920-00-091-9435, 00-091-9435, 5920000919435, 000919435

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-091-943514926 ( FUSE BOX )
REFERENCE DRAWINGS & PICTURES

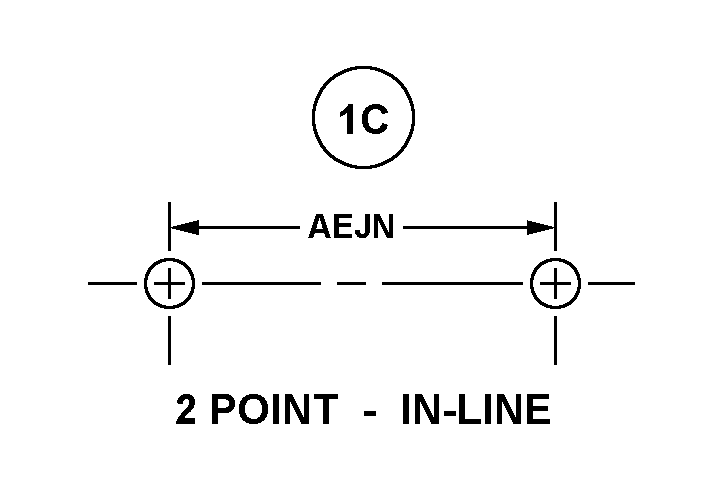

2 POINT-IN-LINE

FUSE BOX | 5920-00-091-9435, 000919435

ROUND, FLUSH MOUNTING

FUSE BOX | 5920-00-091-9435, 000919435
Cross Reference | NSN 5920-00-091-9435
Part Number Cage Code Manufacturer
400172-10157626COMSACO, INC.
40011557626COMSACO, INC.
9000-S6202-74028-T0358475L-3 COMMUNICATIONS WESTWOODCORPORATION
9000-S6202-74028-T0330003NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT
9000S6202-74028PC1 TO 380064NAVAL SHIP SYSTEMS COMMAND
Technical Data | NSN 5920-00-091-9435
Characteristic Specifications
STYLE DESIGNATOR ROUND, FLUSH MOUNTING
OVERALL DEPTH1.750 INCHES NOMINAL
OUTSIDE DIAMETER3.000 INCHES NOMINAL
MATERIAL PLASTIC
MOUNTING METHOD THREADED STUD
STANDARD MOUNTING PATTERN DESIGNATOR 2 POINT-IN-LINE
DISTANCE BETWEEN MOUNTING FACILITY CENTERS2.500 INCHES NOMINAL
MOUNTING FACILITY THREAD SIZE0.138-32 UNC
FUSE TYPE AND QUANTITY ACCOMMODATED2 CARTRIDGE FERRULE
FUSE CURRENT RATING IN AMPS15.0
