NSN 5910-00-013-7588
Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-013-7588 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: 258259801, 258259-801, 5910-00-013-7588, 00-013-7588, 5910000137588, 000137588
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 03, 1968 | 00-013-7588 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

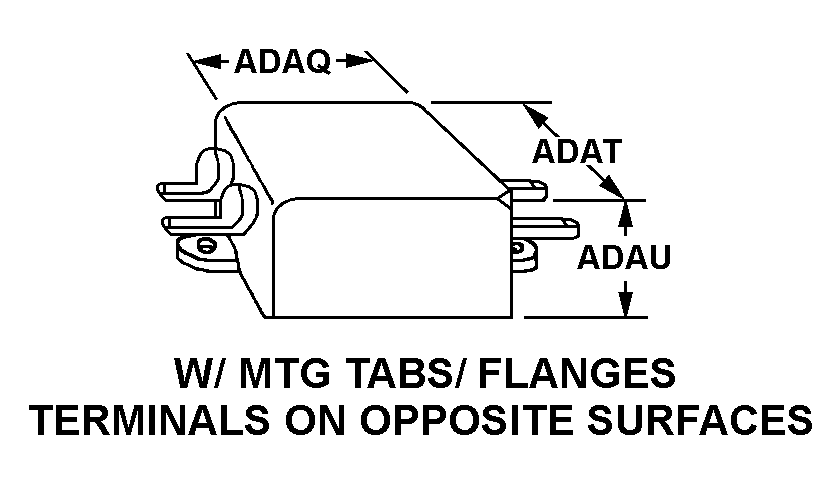

W/MTG TABS/FLANGES TERMINALS ON OPPOSITE SURFACES
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-013-7588
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 258259-801 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5910-00-013-7588
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 20000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 3000.0 AC/DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG TABS/FLANGES TERMINALS ON OPPOSITE SURFACES |
| BODY LENGTH | 2.562 INCHES NOMINAL |
| BODY WIDTH | 0.750 INCHES NOMINAL |
| BODY HEIGHT | 0.625 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 3 INSULATED WIRE LEAD |
| TERMINAL LENGTH | 20.000 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.025 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.190 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | MOUNTING HARDWARE |
| TERMINAL SURFACE TREATMENT | SOLDER |
