NSN 5910-00-010-0246
Part Details | PAPER-PLASTIC DIELECTRIC METALLIZED FIXED CAPACITOR
5910-00-010-0246 A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated.
Alternate Parts: ARA3599, AR-A-3599, 5910000100246, M3386, M3-386, M3336, M3-336, B66790, 66790, 500033052, 5000-3305-2, SCC614091, 5910-00-010-0246, 00-010-0246, 5910000100246, 000100246
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-010-0246 | 31959 ( CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

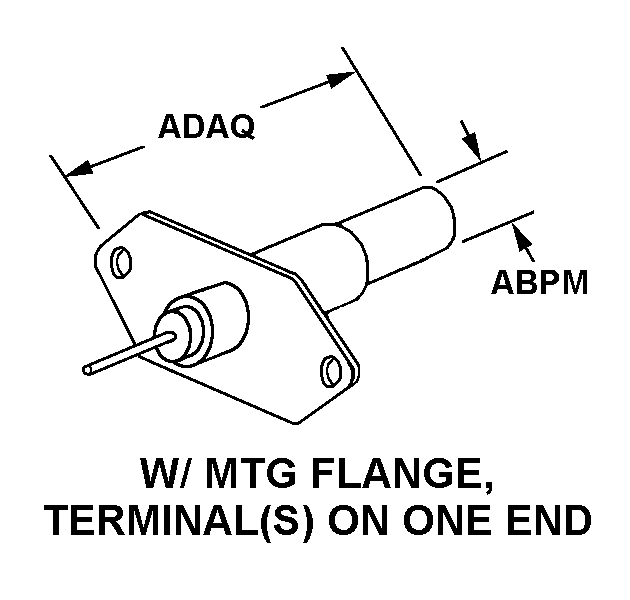

W/MTG FLANGE, TERMINAL(S) ON ONE END
FEEDTHROUGH
Cross Reference | NSN 5910-00-010-0246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AR-A-3599 | 25579 | ARGENT INDUSTRIES INC. |
| 5910000100246 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| M3-386 | 54904 | INDUSTRIAL/MIDWEC CAPACITOR CORPA CHARLES INDUSTRIES CO |
| M3-336 | 54904 | INDUSTRIAL/MIDWEC CAPACITOR CORPA CHARLES INDUSTRIES CO |
| B66790 | 27777 | L3 TECHNOLOGIES, INC.DBA INSIGHT TECHNOLOGY DIVISION |
| 66790 | 27777 | L3 TECHNOLOGIES, INC.DBA INSIGHT TECHNOLOGY DIVISION |
| 5000-3305-2 | 13050 | SPECTRUM CONTROL, INC.DIV API TECHNOLOGIES - EIS/WESSON |
| SCC614091 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5910-00-010-0246
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.250 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 100.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG FLANGE, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 0.437 INCHES NOMINAL |
| BODY LENGTH | 0.875 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | FEEDTHROUGH |
| TERMINAL TYPE AND QUANTITY | 1 THREADED STUD AND 1 WIRE HOOK/LOOP |
| TERMINAL LENGTH | 0.375 INCHES MINIMUM |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.150 INCHES MAXIMUM |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.812 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
