NSN 5910-00-005-4234
Part Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-005-4234 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 40566670615, 40-566-6706-15, 5910-00-005-4234, 00-005-4234, 5910000054234, 000054234
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 07, 1972 | 00-005-4234 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
REFERENCE DRAWINGS & PICTURES

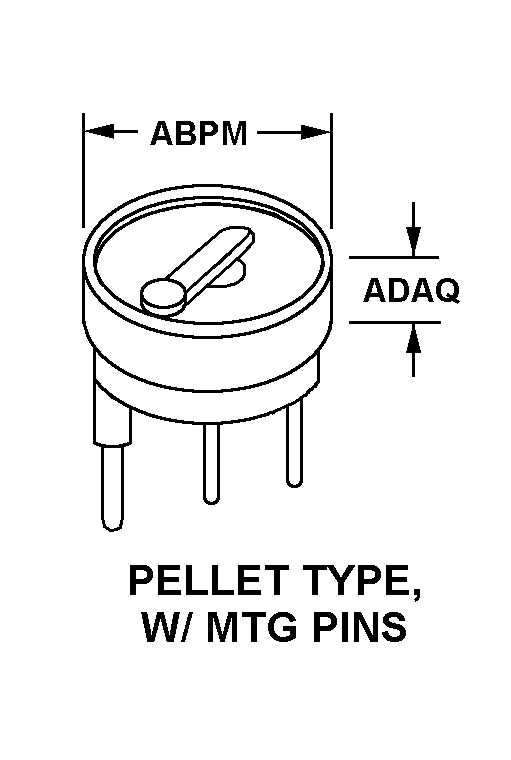

PELLET TYPE, W/MTG PINS
ELECTRODE(S) GROUNDED TO CASE
Cross Reference | NSN 5910-00-005-4234
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40-566-6706-15 | K5294 | GE AVIATION SYSTEMS LTD |
Technical Data | NSN 5910-00-005-4234
| Characteristic | Specifications |
|---|---|
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 75.0 DC SINGLE SECTION |
| BODY STYLE | PELLET TYPE, W/MTG PINS |
| BODY DIAMETER | 0.250 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL LENGTH | 0.375 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
