NSN 5910-00-005-3895
Part Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-005-3895 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: 118P10406T12, 20880302, 2088030-2, 118P10406T12, 5910-00-005-3895, 00-005-3895, 5910000053895, 000053895
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 11, 1972 | 00-005-3895 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

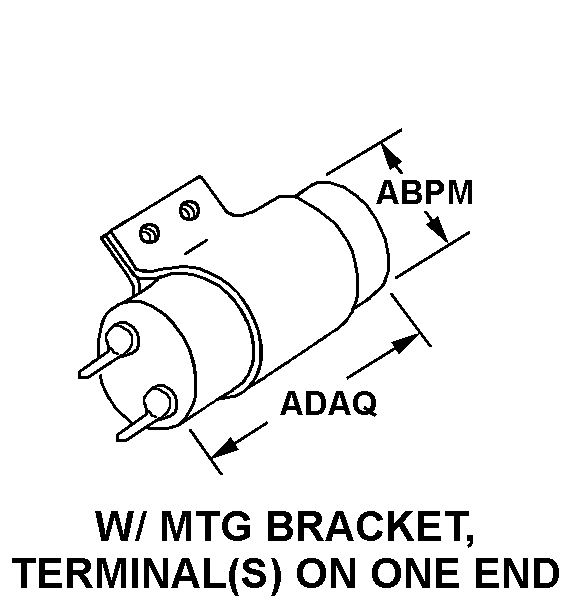

W/MTG BRACKET, TERMINAL(S) ON ONE END
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-005-3895
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 118P10406T12 | 01884 | EXXELIA DEARBORN, INC.DIV EXXELIA DEARABORN |
| 2088030-2 | 27914 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| 118P10406T12 | 56289 | SPRAGUE ELECTRIC COWORLD HQS |
Technical Data | NSN 5910-00-005-3895
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.100 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO +20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 600.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG BRACKET, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| BODY LENGTH | 1.062 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| TERMINAL LENGTH | 1.625 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| CASE INSULATION MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 2000.0 MEGOHM-MICROFARADS |
| POWER FACTOR AT REFERENCE TEMP IN PERCENT | 1.0000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 40.0 MEGOHM-MICROFARADS |
