NSN 5905-00-005-3009
Part Details | FILM FIXED RESISTOR NETWORK
5905-00-005-3009 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Alternate Parts: 69414, 694-14, 111758, 111692, 111758, SMD75123612, SM-D-751236-12, 5905-00-005-3009, 00-005-3009, 5905000053009, 000053009
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 16, 1972 | 00-005-3009 | 32068 ( RESISTOR NETWORK, FIXED, FILM ) |
REFERENCE DRAWINGS & PICTURES

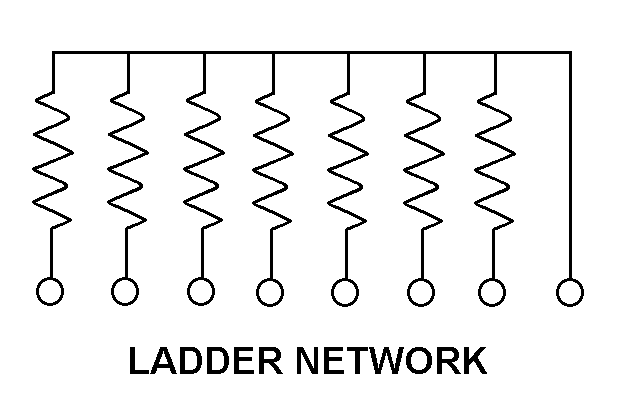

LADDER NETWORK
TERMINALS ONE END
Cross Reference | NSN 5905-00-005-3009
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 694-14 | 11236 | CTS CORP BERNE DIV THICK FILMPRODUCTS GROUP |
| 111758 | 11236 | CTS CORP BERNE DIV THICK FILMPRODUCTS GROUP |
| 111692 | 21340 | ITT TELECOM PRODUCTS CORPNETWORK SYSTEMS DIV |
| 111758 | 21340 | ITT TELECOM PRODUCTS CORPNETWORK SYSTEMS DIV |
| SM-D-751236-12 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5905-00-005-3009
| Characteristic | Specifications |
|---|---|
| RESISTANCE TOLERANCE IN PERCENT | M1.000/P1.000 |
| POWER DISSIPATION RATING IN WATTS | 0.700 TOTAL NETWORK |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 70.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 125.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | M150.0/P150.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | M55.0/P125.0 |
| SCHEMATIC DIAGRAM DESIGNATOR | LADDER NETWORK |
| INCLOSURE METHOD | ENCAPSULATED |
| STYLE DESIGNATOR | 18 TERMINALS ONE END |
| BODY LENGTH | 0.978 INCHES NOMINAL |
| BODY WIDTH | 0.105 INCHES NOMINAL |
| BODY HEIGHT | 0.312 INCHES NOMINAL |
| TERMINAL TYPE | PIN |
| TERMINAL QUANTITY | 7 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.165 INCHES NOMINAL |
