NSN 5620-01-126-5471
Part Details | HOLLOW CONCRETE MASONRY UNIT
5620-01-126-5471 A precast concrete block, basically rectangular, with one or more cells extending vertically through the block. It is used in the construction of masonry walls.
Alternate Parts: SSC621, SS-C-621, SSC621 TY1CL1GRPFMASTA, SS-C-621 TY1CL1GRPFMASTA, 5620-01-126-5471, 01-126-5471, 5620011265471, 011265471
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | FEB 14, 1982 | 01-126-5471 | 07621 ( CONCRETE MASONRY UNIT, HOLLOW ) |

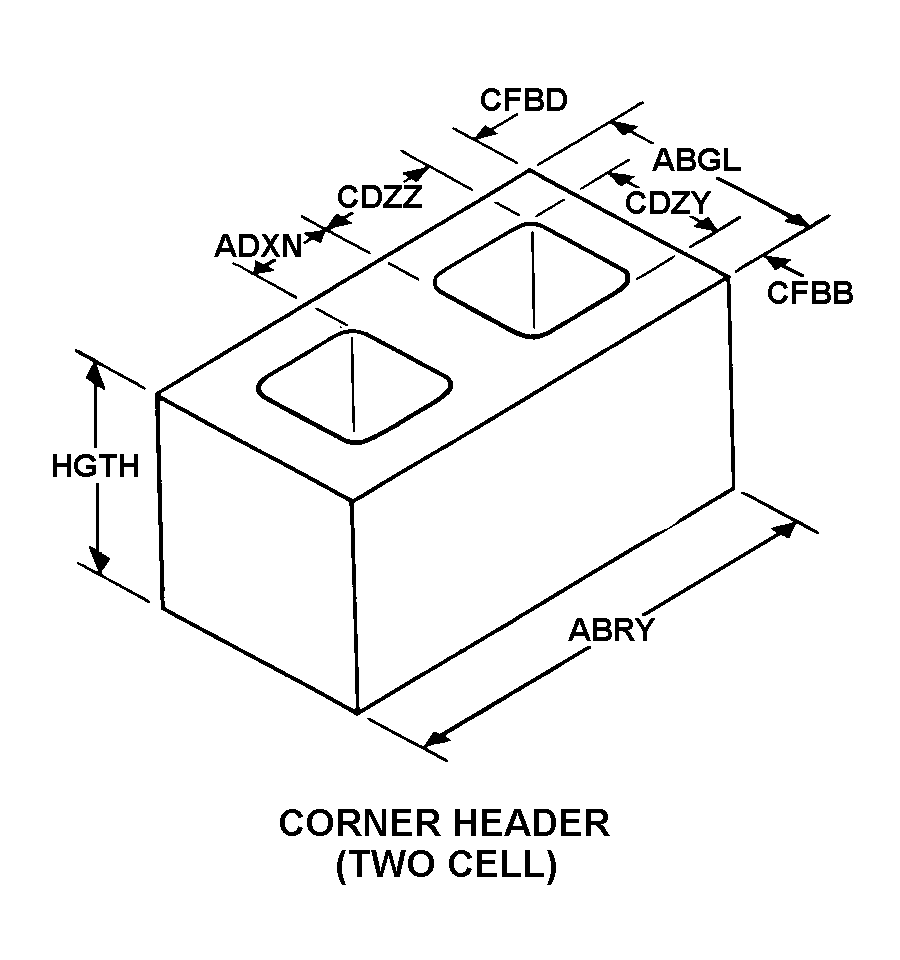

REFERENCE DRAWINGS & PICTURES
CORNER HEADER (TWO CELL)
Cross Reference | NSN 5620-01-126-5471
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS-C-621 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| SS-C-621 TY1CL1GRPFMASTA | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5620-01-126-5471
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CORNER HEADER (TWO CELL) |
| WIDTH | 8.000 INCHES NOMINAL |
| LENGTH | 8.000 INCHES NOMINAL |
| HEIGHT | 8.000 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1 CLASS AND P GRADE AND A FORM AND A STYLE |
