NSN 5365-00-037-3160
Part Details | MACHINE THREAD PLUG
5365-00-037-3160 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Alternate Parts: 2832, 5365-00-037-3160, 00-037-3160, 5365000373160, 000373160
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-037-3160 | 03801 ( PLUG, MACHINE THREAD ) |

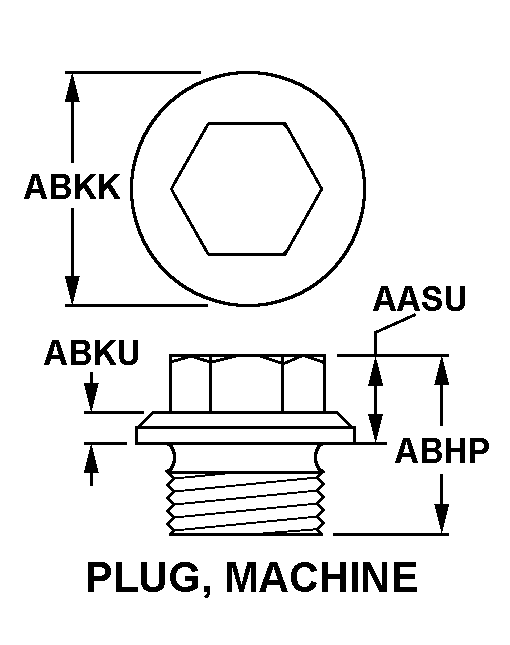

REFERENCE DRAWINGS & PICTURES
PLAIN
PLUG, MACHINE
Cross Reference | NSN 5365-00-037-3160
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2832 | 28839 | TELEDYNE INDUSTRIES INCTELEDYNE POWER SYSTEMS DIV |
Technical Data | NSN 5365-00-037-3160
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PLUG, MACHINE |
| HEAD HEIGHT | 0.312 INCHES NOMINAL |
| FLANGE DIAMETER | 1.250 INCHES NOMINAL |
| FLANGE THICKNESS | 0.141 INCHES NOMINAL |
| CONNECTION STYLE | PLAIN |
| BODY CORE DIAMETER | 0.656 INCHES NOMINAL |
| CORE DEPTH | 0.781 INCHES NOMINAL |
| SPECIAL FEATURES | CORE COUNTERBORED 49/64 IN. DIA BY 3/8 IN. DEEP |
